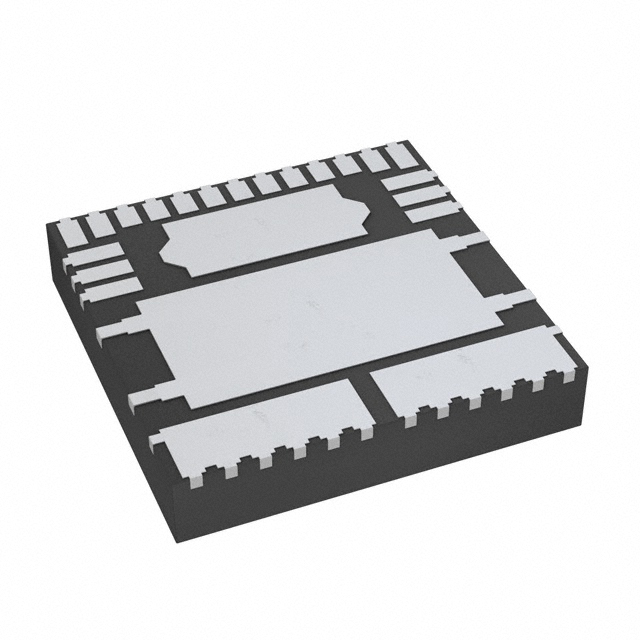

The MC06XSD200FK from NXP Semiconductors is a high-side power distribution switch featuring an N-channel output configuration. It is designed for general-purpose applications and supports a supply voltage range of 3V to 5.5V, with a load voltage capability of up to 36V.
Key electrical specifications include a maximum output current of 9A and a low on-resistance of 6 mOhm (typical). The device offers a 1:2 ratio and is equipped with an SPI interface for control. Fault protection features include fixed current limiting, open load detection, over-temperature, and over-voltage protection, enhancing system reliability.
This component operates within a temperature range of -40°C to 150°C (TJ). It is supplied in a 23-PQFN (12x12) package, specifically a 23-PowerQFN, suitable for surface mounting. The package is delivered in tray format.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3 V to 5.5 V, and the load voltage range is 8 V to 36 V.
The maximum output current is 9A per channel.
It is available in a 23-PowerQFN package (23-PQFN 12x12 mm) for surface mount mounting.
The operating junction temperature range is -40°C to 150°C.
It includes current limiting (fixed), open load detect, over temperature, and over voltage protection.
It uses an SPI interface for control and diagnostics.
