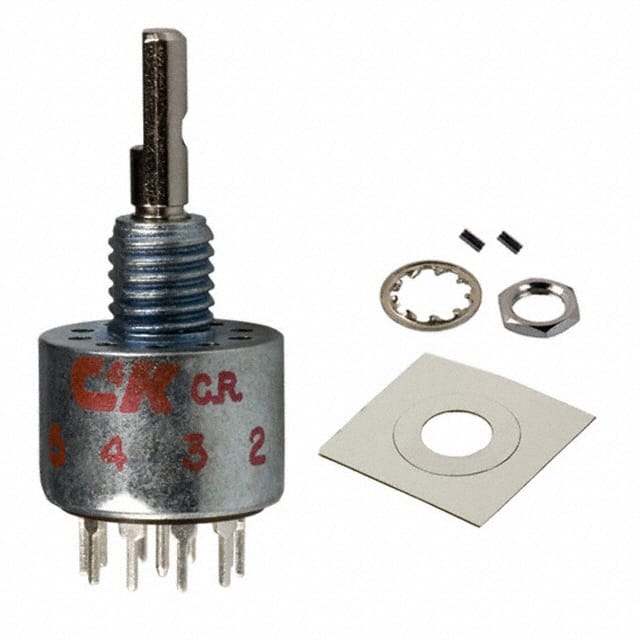

This C&K Components rotary switch, part number MC00L1NCQD, is a single-deck, 12-position switch with a 30° angle of throw. It is designed for panel mounting and features PC pin termination. The switch utilizes copper alloy contacts with silver plating, offering a contact rating of 250mA at 125V AC or 28V DC. The electrical life is rated for 10,000 make-and-break cycles under specific conditions.
Key electrical specifications include an insulation resistance of 10¹⁰ Ω minimum and a dielectric strength of 600 Vrms minimum. The operating temperature range is from -30°C to 85°C. The actuator is flatted with a diameter of 3.17mm and a length of 10.16mm, with a depth behind the panel of 10.42mm. The switch is specified as non-shorting (BBM) and has continuous index stops.
Typical applications for this type of rotary switch include test equipment, industrial equipment, and medical equipment, where reliable multi-position switching is required. The construction materials include a zinc alloy housing and bushing, and a glass-filled polyester rotor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 250 mA maximum at 125 V AC or 28 V DC.
The electrical life is 10,000 make-and-break cycles at 150 mA, 125 V AC or 28 DC.
The contact resistance is typically below 20 mΩ initial.
The operating temperature range is -30°C to 85°C.
The switch has 12 positions.
It uses PC Pin termination.
The angle of throw is 30°.
