| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Tape & Reel | |
| Type | |
| Width |

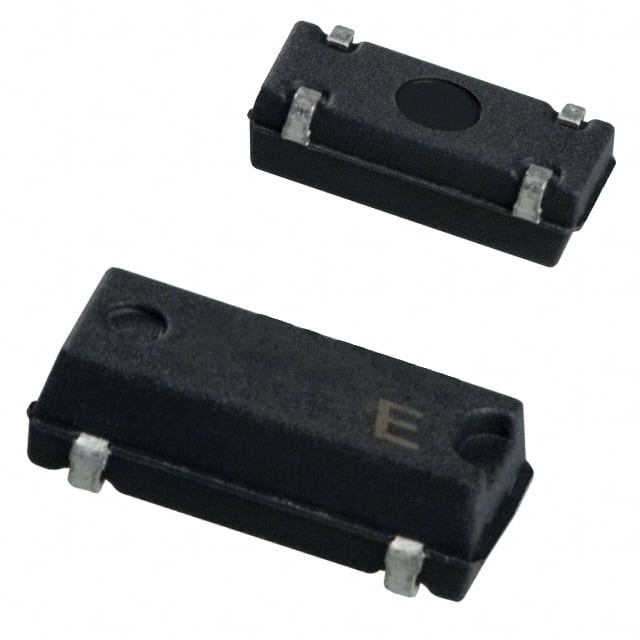

The Epson MC-306 32.7680K-A0:ROHS is a kHz tuning fork crystal designed for precise timekeeping and real-time clock applications. It operates at a fundamental frequency of 32.768 kHz with a load capacitance of 12.5 pF. The crystal offers a frequency tolerance of ±100 ppm and an equivalent series resistance of 50 kΩ. It is housed in a compact 4-SOJ surface mount package measuring 8.00 mm x 3.20 mm x 2.54 mm with a 5.50 mm pitch. The operating temperature range spans -40°C to 85°C, making it suitable for industrial environments. This crystal is commonly used in RTC modules, consumer electronics, and embedded systems requiring accurate timekeeping.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.74 | $0.74 |
| 10+ | $0.58 | $0.58 |
| 100+ | $0.52 | $0.52 |
| 500+ | $0.50 | $0.50 |
| 1,000+ | $0.48 | $0.48 |
| 2,000+ | $0.46 | $0.46 |
| 5,000+ | $0.43 | $0.43 |
| 10,000+ | $0.41 | $0.41 |
| 25,000+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency is 32.768 kHz.
The load capacitance is 12.5 pF.
The ESR is 50 kΩ.
The frequency tolerance is ±100 ppm.
The operating temperature range is -40°C to 85°C.
The package is a 4-SOJ surface mount package with 5.50 mm pitch, dimensions 8.00 mm x 3.20 mm x 2.54 mm.
The RoHS status is listed as RoHS3 Compliant but is unverified. Please verify from official documentation.
