| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Tolerance | |
| Height | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| SVHC Present | |
| Type | |
| Width |

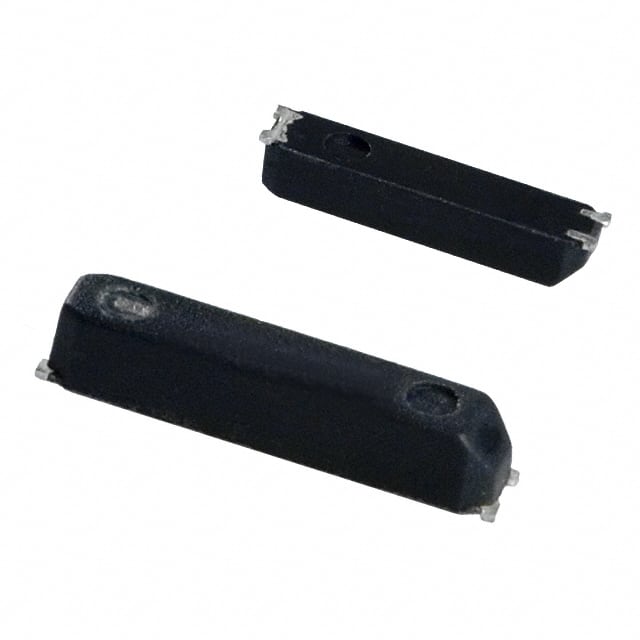

The Epson MC-146 32.7680KA-A is a tuning fork crystal designed for low-frequency timing applications. It operates at a nominal frequency of 32.768 kHz with a frequency tolerance of ±20ppm at +25°C. The crystal requires a load capacitance of 12.5pF and features a maximum equivalent series resistance (ESR) of 65 kΩ.
This crystal is housed in a compact surface-mount package (4-SMD, Flat Leads) measuring 6.70mm x 1.50mm x 1.40mm. It operates over a temperature range of -40°C to +85°C and can be stored between -55°C and +125°C. The drive level is limited to 1.0 μW maximum, with typical motional capacitance of 1.9 fF and shunt capacitance of 0.8 pF.
Typical applications include real-time clock (RTC) circuits, small communications devices, and other low-power timing systems requiring precise frequency generation. The crystal is RoHS3 compliant per the manufacturer's datasheet.
Surface Mount, 4-SMD with Flat Leads, dimensions 6.70mm x 1.50mm x 1.40mm.
-40°C to +85°C.
Yes, RoHS3 compliant per datasheet.
±20ppm at +25°C.
12.5pF.
65 kΩ maximum.
±3 ppm per year maximum at +25°C first year.
