| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,398 pcs
|
2398 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

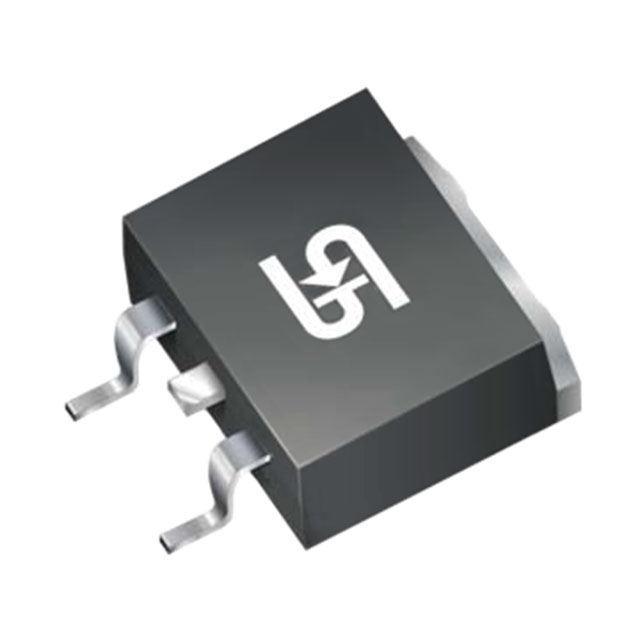

The MBRS10H150CT is a Schottky rectifier diode array from Taiwan Semiconductor, configured as a 1 pair common cathode. It is rated for a maximum reverse voltage (VRRM) of 150V and delivers an average rectified forward current of 5A per diode. The forward voltage is typically 970mV at a 10A test current. With a reverse recovery time of ≤500ns, this diode array is suitable for high-speed switching applications.
Packaged in a surface-mount TO-263-3 (D²Pak) with a supplier device package of TO-263AB (D²PAK), it offers robust thermal performance. The operating temperature range spans from -55°C to 175°C, making it reliable in harsh environments. The common cathode configuration allows efficient use in power supply and polarity protection circuits.
This component is identified as RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). It is designed for use in applications requiring low forward voltage drop and fast switching, such as DC-DC converters, freewheeling diodes, and reverse polarity protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
| 10+ | $1.26 | $1.26 |
| 100+ | $0.83 | $0.83 |
| 500+ | $0.66 | $0.66 |
| 800+ | $0.50 | $0.50 |
| 9,600+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage (VRRM) is 150V.
The average rectified forward current (Io) per diode is 5A.
The forward voltage (Vf) is 970 mV at a test current of 10A.
The maximum reverse recovery time (trr) is 500 ns under test condition Io > 200mA.
It is available in TO-263-3 (D²Pak) surface-mount package, supplier device package TO-263AB (D²PAK).
The operating temperature range is -55°C to 175°C.
It is marked as RoHS3 compliant, but this is unverified.
