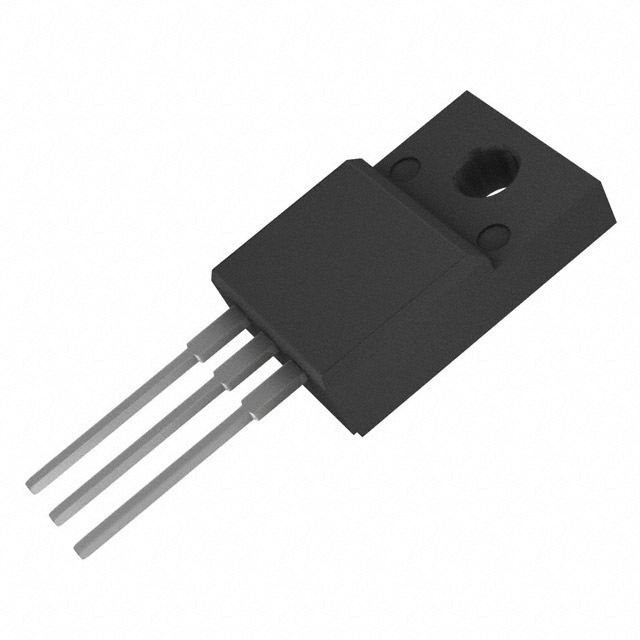

MBRF1060CT This MBRF1060CT is a 60V, 10A Schottky rectifier array with common cathode configuration. It features low forward voltage drop and high surge capability.
Mfr Part #:

MBRF1060CT

Available from 1 distributors
Mfr Name: SMC Diode Solutions
SMC Diode Solutions
This MBRF1060CT is a 60V, 10A Schottky rectifier array with common cathode configuration. It features low forward voltage drop and high surge capability.
✓ Total Stock: 10,000 pcs

MBRF1060CT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MBRF1060CT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Junction Capacitance
Medical Grade
Mounting Type
Operating Temperature
SVHC Present
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
Weight
View Similar Products (0)

MBRF1060CT Description

Short technical summary and product information.

The MBRF1060CT is a Schottky rectifier array with a common cathode configuration, designed for high-efficiency power conversion. It offers a peak repetitive reverse voltage of 60V and a total average forward current of 10A (5A per leg) at Tc=133°C. The device features a low forward voltage drop of 0.70V max at 5A and 25°C, and a non-repetitive surge current rating of 125A per leg, ensuring ruggedness in demanding applications.



Electrically, the MBRF1060CT provides high-speed switching with a voltage rate of change (dv/dt) of up to 10000 V/μs. Junction capacitance is typically 180pF, and reverse leakage current is 1mA max at 25°C. Thermal resistance from junction to case is 3.5°C/W, supporting operation over a temperature range of -55°C to 150°C.



The device is housed in an ITO-220AB through-hole package, offering an isolation voltage of 4500V when properly mounted. It weighs 2 grams and is designed for through-hole mounting. Typical applications include switching power supplies, converters, free-wheeling diodes, and reverse battery protection.



The MBRF1060CT is manufactured by SMC Diode Solutions and is a Pb-Free device.

MBRF1060CT Quick Information

Product Type: Schottky Rectifier Array
Canonical Name: Schottky Rectifier Array, Common Cathode, 60V, 10A, ITO-220AB
Subcategory: Diodes - Rectifiers - Arrays

MBRF1060CT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

MBRF1060CT Features

  • Schottky rectifier with common cathode.
  • Rated for 60V reverse voltage.
  • Total forward current of 10A.
  • Low forward voltage drop of 0.70V.
  • High surge current capability of 125A.

MBRF1060CT Applications

  • Used in switching power supplies.
  • Ideal for high-frequency converters.
  • Suitable for free-wheeling diode circuits.
  • Reverse battery protection applications.

MBRF1060CT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the MBRF1060CT?

The maximum repetitive peak reverse voltage is 60V.

What is the average forward current rating?

The total average forward current is 10A (5A per leg) at Tc=133°C with 50% duty cycle.

What is the forward voltage drop?

The forward voltage drop is 0.70V max (0.66V typ) at 5A and 25°C, and 0.65V max (0.60V typ) at 125°C.

What package is the MBRF1060CT available in?

It comes in an ITO-220AB (TO-220-3 Full Pack, Isolated Tab) through-hole package.

What is the operating temperature range?

The operating temperature range is -55°C to 150°C.

What is the non-repetitive surge current rating?

The surge current per leg is 125A with an 8.3ms half sine pulse.
