| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Current | |
| Forward Voltage (Typical/Maximum @ @ 3 A, Pulse, TJ = 125 °C) | |
| Forward Voltage (Typical/Maximum @ @ 3 A, Pulse, TJ = 25 °C) | |
| Junction Capacitance | |
| Junction Temperature Range | |
| Medical Grade | |
| Mounting Type | |
| Non-Repetitive Peak Surge Current | |
| Operating Temperature | |
| Peak Repetitive Reverse Voltage | |
| Reverse Current (Typical/Maximum @ @ rated VR, TJ = 125 °C) | |
| Reverse Current (Typical/Maximum @ @ rated VR, TJ = 25 °C) | |
| Speed | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance - Junction to Case | |
| Voltage | |
| Weight |

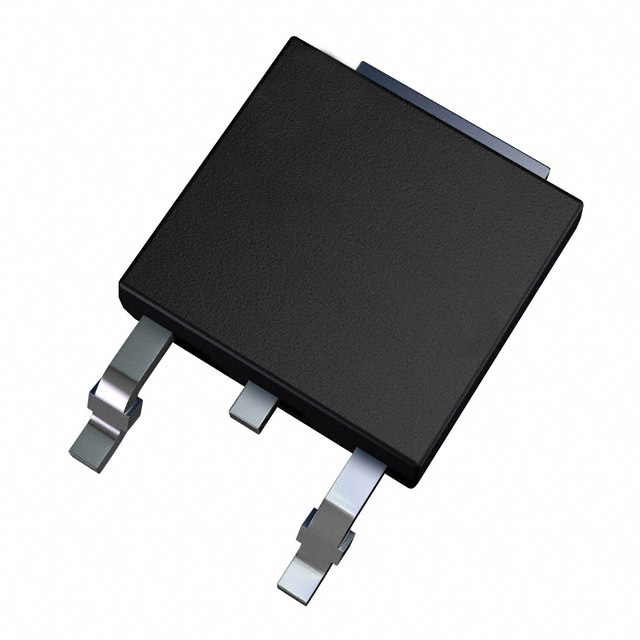

The MBRD340 is a 40V, 3A Schottky rectifier diode manufactured by SMC Diode Solutions. It offers a low forward voltage drop of typically 0.55V at 3A and 25°C, with a maximum of 0.60V. At elevated temperatures (125°C), the typical forward voltage drops to 0.48V. The device is designed for high-frequency operation and features a guard ring for enhanced ruggedness and long-term reliability.
The diode has a peak repetitive reverse voltage of 40V and an average rectified forward current of 3A. It can handle non-repetitive peak surge currents up to 75A (8.3ms half sine pulse). Reverse leakage current is typically 0.01mA at 25°C and 2mA at 125°C. Junction capacitance is typically 130pF at 5V reverse bias.
The MBRD340 is packaged in a surface mount DPAK (TO-252-3) case, which is suitable for automated assembly. It operates over a junction temperature range of -55°C to 150°C and has a thermal resistance junction-to-case of 6°C/W. The device is Pb-Free and RoHS compliant (unverified). Typical applications include switching power supplies, free-wheeling diodes, reverse battery protection, and DC-DC converters.
| Qty | Low | High |
|---|---|---|
| 25,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40V.
3A.
Typically 0.55V at 25°C, maximum 0.60V.
Fast recovery, ≤500ns at >200mA.
Surface mount DPAK (TO-252-3).
-55°C to 150°C.
75A.
