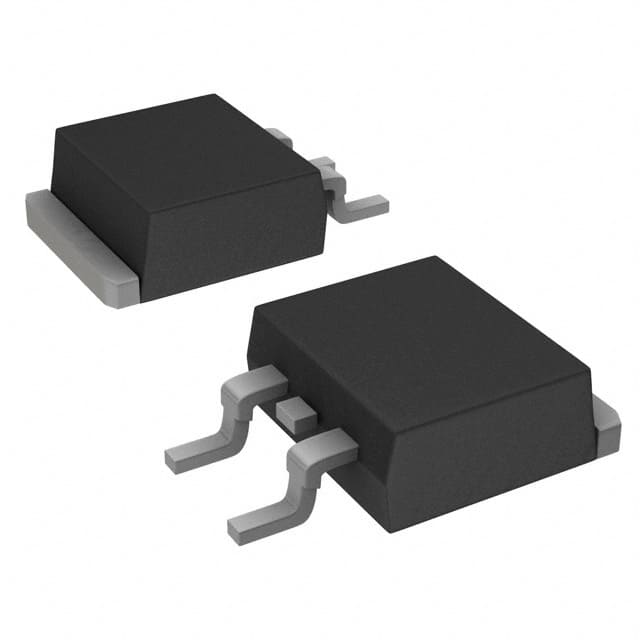

MBRB20200CTT4G Dual Schottky rectifier with 200V reverse voltage rating, 20A average rectified current per device, and 900mV typical forward voltage drop at 10A.
Mfr Part #:

MBRB20200CTT4G

Available from 8 distributors
Mfr Name: On Semiconductor
On Semiconductor
Dual Schottky rectifier with 200V reverse voltage rating, 20A average rectified current per device, and 900mV typical forward voltage drop at 10A.
✓ Total Stock: 89,557 pcs
$ Price Range: $1.08 - $3.17

MBRB20200CTT4G Available from 8 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MBRB20200CTT4G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Diode Configuration
Halogen Free
Mounting Type
Operating Temperature
Speed
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
Weight
View Similar Products (0)

MBRB20200CTT4G Description

Short technical summary and product information.

The MBRB20200CTT4G is a dual Schottky rectifier from On Semiconductor designed for high-frequency switching power supplies and converters with up to 48V outputs. It features a common cathode configuration with two 10A rated legs, providing a total device current rating of 20A. The device blocks up to 200V reverse voltage and offers a low forward voltage drop of typically 900mV at 10A.



This rectifier is built with Schottky barrier technology using a platinum barrier metal, delivering improved performance at frequencies from 250kHz to 5MHz. It includes a guardring for stress protection and supports a high dv/dt capability of 10,000 V/µs. The device is AEC-Q101 qualified and is available in a Pb-free D²PAK surface mount package (TO-263-3).



The package weighs approximately 1.7 grams and meets MSL Level 1 requirements. The case material is epoxy, UL 94 V-0 rated. Maximum soldering temperature is 260°C for 10 seconds. ESD ratings are HBM 3B and Machine Model C.

MBRB20200CTT4G Quick Information

Product Type: Dual Schottky Rectifier
Series: MBRB20200CT
Canonical Name: MBRB20200CTT4G Dual Schottky Rectifier, 200V, 20A
Subcategory: Diodes - Rectifiers - Arrays

MBRB20200CTT4G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

MBRB20200CTT4G Estimated Pricing

Qty Low High
1+ $3.17 $3.17
10+ $1.85 $1.85
100+ $1.37 $1.37
500+ $1.08 $1.08
800+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

MBRB20200CTT4G Features

  • 200V reverse voltage blocking capability.
  • 20A average rectified forward current total.
  • Low forward voltage drop of 900mV.
  • AEC-Q101 qualified for automotive applications.
  • Pb-free and MSL Level 1 compliant.

MBRB20200CTT4G Applications

  • Used in high-frequency switching power supplies.
  • Ideal for DC-DC converters up to 48V output.
  • Suitable for automotive power systems.
  • Works in freewheeling and OR-ing diode circuits.

MBRB20200CTT4G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the MBRB20200CTT4G?

200V.

What is the average forward current rating?

20A per device (10A per leg) at TC=134°C.

What is the typical forward voltage drop?

900mV at 10A forward current.

Is this device AEC-Q101 qualified?

Yes, it is AEC-Q101 qualified.

What package does the MBRB20200CTT4G come in?

D²PAK (TO-263-3) surface mount package.
