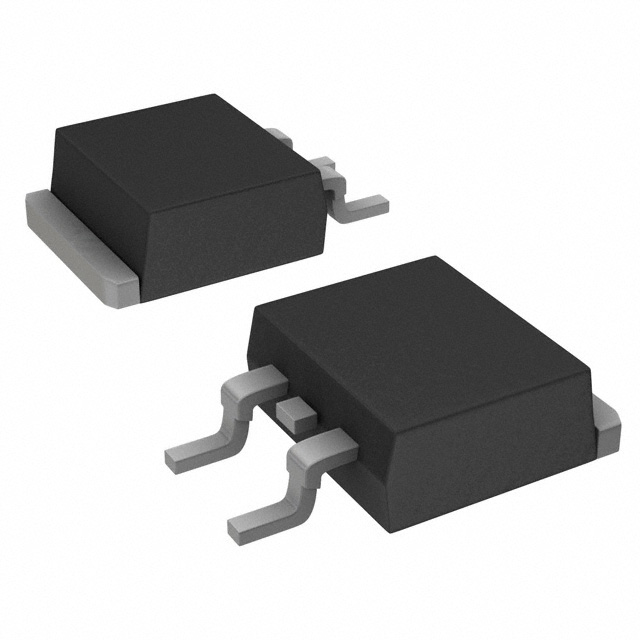

MBRB20100CT Schottky diode array with 1 pair common cathode, 100V reverse voltage, 10A average rectified current per diode, in TO-263 (D²Pak) surface mount package.
Mfr Part #:

MBRB20100CT

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Schottky diode array with 1 pair common cathode, 100V reverse voltage, 10A average rectified current per diode, in TO-263 (D²Pak) surface mount package.
✓ Total Stock: 74 pcs
$ Price Range: $1.27 - $2.85

MBRB20100CT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
74 pcs
On Request
74 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MBRB20100CT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Halogen Free
Mounting Type
Operating Temperature
SVHC Present
Speed
Supplier Device Package
Tape & Reel
Technology
UL Flammability Rating
Voltage
Weight
View Similar Products (0)

MBRB20100CT Description

Short technical summary and product information.

The MBRB20100CT is a Schottky barrier rectifier array designed for general-purpose commercial applications. It contains two Schottky diodes in a common cathode configuration, each rated for 100V reverse voltage and 10A average forward current.



Electrical characteristics include a forward voltage drop of 0.84V maximum at 5A (typical 0.8V) and a reverse leakage current of 0.1mA maximum at 100V. The device offers fast recovery suitable for switching applications up to 500ns.



Packaged in a TO-263-3 (D²Pak) surface mount case, it features matte tin plated leads, UL 94V-0 flammability rated molding compound, and weighs approximately 1.6g. The junction operating temperature ranges from -55°C to +150°C.

MBRB20100CT Quick Information

Product Type: Schottky Diode Array
Canonical Name: Schottky Rectifier Diode Array 100V 10A Common Cathode Surface Mount TO-263
Subcategory: Rectifiers – Arrays

MBRB20100CT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free Finish

MBRB20100CT Estimated Pricing

Qty Low High
1+ $2.85 $2.85
10+ $2.01 $2.01
100+ $1.40 $1.40
500+ $1.27 $1.27
800+ $1.27 $1.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

MBRB20100CT Features

  • Pair common cathode Schottky diodes.
  • 100V reverse voltage rating.
  • 10A average rectified current per diode.
  • Low forward voltage drop (0.84V max).
  • Surface mount TO-263 D²Pak package.

MBRB20100CT Applications

  • Polarity protection in power supplies.
  • Use as freewheeling diodes.
  • Switching power supply rectification.
  • DC-DC converter output rectifier.

MBRB20100CT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the diode configuration of the MBRB20100CT?

1 pair common cathode.

What is the maximum reverse voltage rating?

100 V.

What is the average rectified current per diode?

10 A.

What is the forward voltage drop?

Maximum 0.84 V at 5 A (25°C); typical 0.8 V.

What package does the MBRB20100CT use?

TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

What is the operating temperature range?

-55°C to 150°C junction temperature.

Is the MBRB20100CT RoHS compliant?

Yes, RoHS3 compliant per datasheet.
