| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,620 pcs
|
4620 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Maximum @ TC = 125 °C) | |
| Current Rating (Maximum) | |
| Diode Configuration | |
| Forward Voltage (Maximum @ IF = 20 A) | |
| Forward Voltage (Maximum @ IF = 20 A, TJ = 25 °C) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Speed | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Supplier Package | |
| Surge Current Rating (Maximum @ 8.3 ms single half sine-wave superimposed on rated load per diode) | |
| Surge Current Rating (Maximum @ per diode (1) 2.0 μs pulse width, f = 1.0 kHz) | |
| Surge Current Rating (Maximum) | |
| Technology | |
| Voltage | |
| Voltage Rate of Change | |
| Voltage Rating (Maximum) |
The Vishay Dale MBR4060PT-E3/45 is a dual common-cathode Schottky rectifier featuring a guardring for overvoltage protection. It is designed for low voltage, high frequency rectifier applications such as switching mode power supplies, freewheeling diodes, DC/DC converters, and polarity protection.
Key electrical characteristics include a maximum average forward current of 40A at 125°C and a peak forward surge current of 400A. The maximum forward voltage is typically 0.72V at 20A. This rectifier operates over a wide temperature range from -65°C to 150°C.

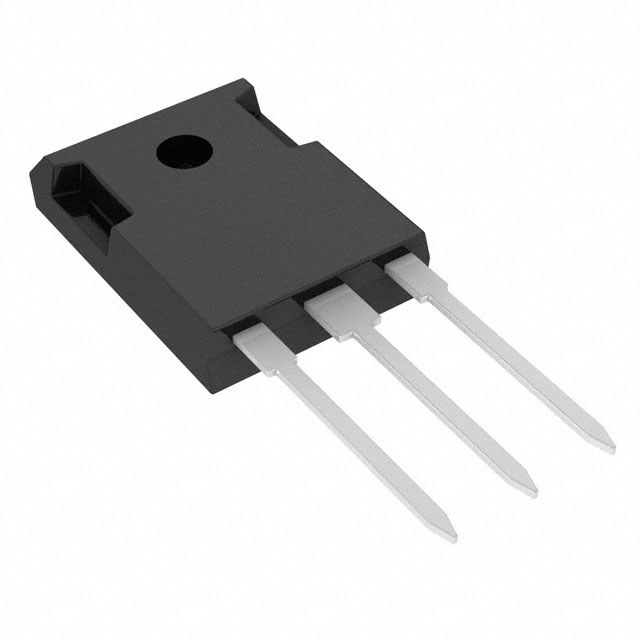

Packaged in a TO-247AD (TO-3P) case, it is suitable for through-hole mounting. The device offers lower power losses and high efficiency, making it a suitable choice for demanding power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous forward current is 40A.
The peak reverse voltage rating is 60V.
The maximum forward voltage is 720mV at 20A.
The peak non-repetitive forward surge current is 400A.
The operating temperature range is -65°C to 150°C.
The component is supplied in a TO-247AD (TO-3P) package.
