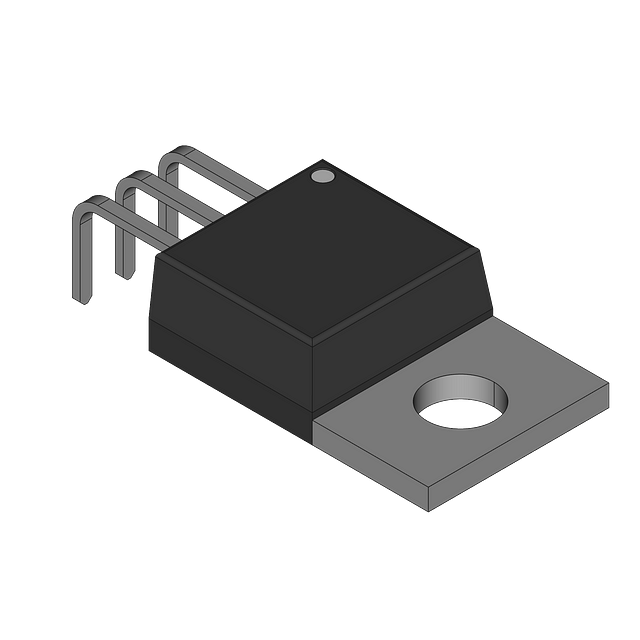

The MBR2545CT is a Schottky barrier rectifier array from On Semiconductor, configured as a 1 pair common cathode. It is rated for a maximum reverse voltage of 45V and an average rectified forward current of 30A at a case temperature of 160°C. The device utilizes Schottky barrier technology with a platinum barrier metal, providing low forward voltage (typical 820mV at 30A) and fast switching.
Key electrical characteristics include a non-repetitive peak surge current of 150A per diode leg, a peak repetitive reverse surge current of 1.0A, and a high voltage rate of change capability of 10000 V/µs. The device is ESD rated with >400V Machine Model and >8000V Human Body Model. It operates over a junction temperature range of -65°C to 175°C.
The MBR2545CT is housed in a through-hole TO-220-3 package (also known as TO-220AB). It has a maximum thermal resistance junction-to-case of 1.5°C/W per leg and junction-to-ambient of 50°C/W when mounted on FR-4 with minimum pad size. The package is UL 94 V-0 rated and weighs approximately 1.9 grams. Lead soldering temperature is 260°C for 10 seconds maximum.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.65 | $2.65 |
| 10+ | $1.81 | $1.81 |
| 100+ | $1.33 | $1.33 |
| 1,000+ | $0.93 | $0.93 |
| 2,000+ | $0.88 | $0.88 |
| 4,000+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
45V.
30A at TC=160°C.
820mV at 30A.
≤500ns (typical for Schottky diodes may be negligible).
TO-220-3 (through-hole).
150A per diode leg.
-65°C to 175°C.
