| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,498 pcs
|
1498 pcs | On Request | 1 | On Request | On Request | 09+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

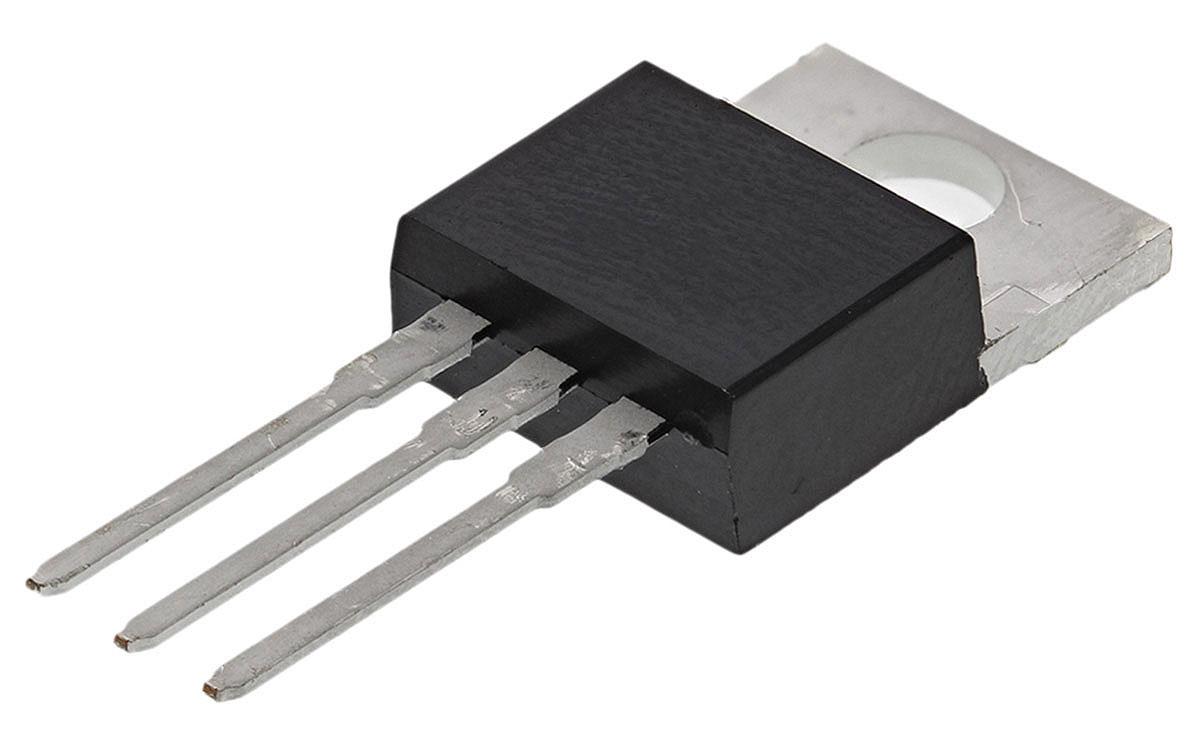

The Vishay Dale MBR2060CT-E3/45 is a dual common cathode Schottky rectifier diode designed for low voltage, high frequency applications. It features a 60V repetitive peak reverse voltage and a maximum average forward rectified current of 20A at 135°C.
This diode exhibits a low forward voltage drop, with typical values of 0.7V at 10A according to the datasheet, and 950mV at 10A as stated on the manufacturer's page. It also boasts a high forward surge capability of 150A.
Packaged in a TO-220-3 through-hole configuration, the MBR2060CT-E3/45 is suitable for applications such as switching mode power supplies, freewheeling diodes, DC/DC converters, and polarity protection. The operating temperature range is -65°C to 150°C, with a maximum junction temperature of 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage is 60V.
The maximum average forward rectified current is 20A at 135°C.
The typical forward voltage drop is 0.7V at 10A.
The package type is TO-220-3.
The operating temperature range is -65°C to 150°C.
