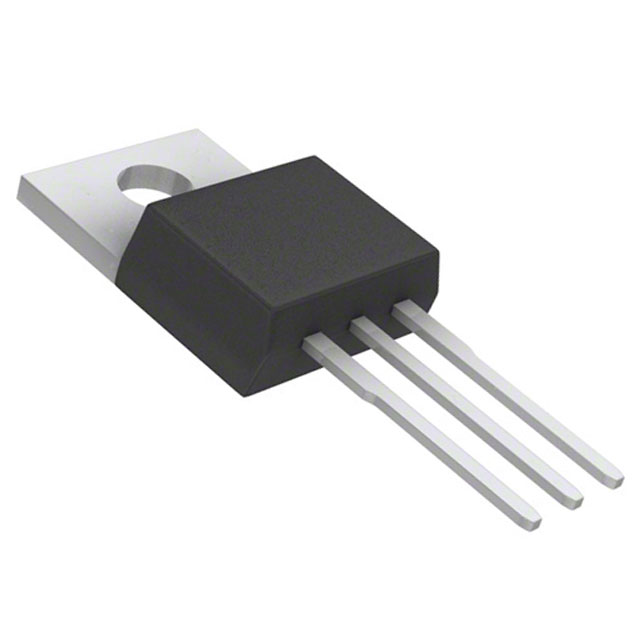

MBR2060CT MBR2060CT is a 60V, 20A Schottky rectifier array in a TO-220AB through-hole package. It features a common cathode configuration and low forward voltage drop.
Mfr Part #:

MBR2060CT

Available from 1 distributors
Mfr Name: SMC Diode Solutions
SMC Diode Solutions
MBR2060CT is a 60V, 20A Schottky rectifier array in a TO-220AB through-hole package. It features a common cathode configuration and low forward voltage drop.
✓ Total Stock: 1,800 pcs
$ Price Range: $0.32 - $1.43

MBR2060CT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
1,800 pcs
On Request
1800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MBR2060CT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Junction Capacitance
Mounting Type
Operating Temperature
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
Weight
View Similar Products (0)

MBR2060CT Description

Short technical summary and product information.

The MBR2060CT is a Schottky rectifier array from SMC Diode Solutions, designed for high-efficiency power conversion applications. It contains two Schottky diodes in a common cathode configuration, each rated for 10A average forward current (20A total per device). The device offers a maximum repetitive reverse voltage of 60V and a low forward voltage drop of 0.66V typical at 10A and 25°C.



This rectifier is suitable for switching power supplies, converters, free-wheeling diodes, and reverse battery protection. It features fast switching with a speed rating of ≤500ns and >200mA, and can operate over a junction temperature range of -55°C to 150°C. The device includes a guard ring for enhanced ruggedness and long-term reliability.



The MBR2060CT is housed in a TO-220AB through-hole package, making it easy to mount on a heatsink. It is lead-free (Pb-Free) and comes in tube packaging with 50 pieces per tube.

MBR2060CT Quick Information

Product Type: Schottky Rectifier Array
Canonical Name: MBR2060CT Schottky Rectifier Array
Subcategory: Rectifier Array

MBR2060CT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Pb-Free

MBR2060CT Estimated Pricing

Qty Low High
1+ $1.43 $1.43
50+ $0.67 $0.67
100+ $0.60 $0.60
500+ $0.46 $0.46
1,000+ $0.42 $0.42
2,000+ $0.39 $0.39
5,000+ $0.35 $0.35
10,000+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

MBR2060CT Features

  • 60V maximum repetitive reverse voltage.
  • 20A average rectified forward current.
  • Low forward voltage drop of 0.66V typical.
  • Fast recovery ≤500ns at >200mA.
  • TO-220AB through-hole package.

MBR2060CT Applications

  • Used in switching power supply circuits.
  • Ideal for DC-DC converter designs.
  • Suitable for free-wheeling diode applications.
  • Provides reverse battery protection.

MBR2060CT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the MBR2060CT?

The maximum repetitive reverse voltage (VRRM) is 60V.

What is the forward current rating of the MBR2060CT?

The average rectified forward current is 10A per leg (20A per device) at 50% duty cycle and Tc=80°C.

What is the forward voltage drop of the MBR2060CT?

The typical forward voltage is 0.66V at 10A and 25°C, with a maximum of 0.80V.

What package does the MBR2060CT come in?

The MBR2060CT is available in a TO-220AB through-hole package.

What is the operating temperature range of the MBR2060CT?

The junction temperature range is -55°C to 150°C.
