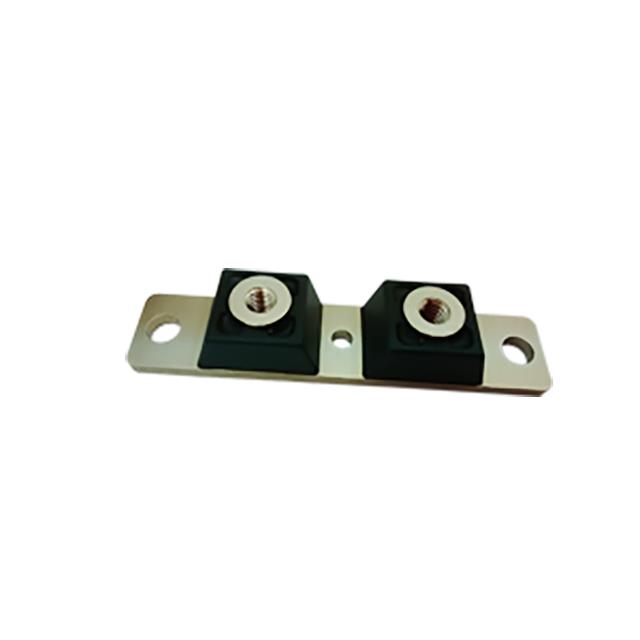

MBR20060CT Schottky diode module rated at 60V repetitive peak reverse voltage and 200A average forward current. Features a common cathode configuration in a Twin Tower chassis mount package.
Mfr Part #:

MBR20060CT

Available from 1 distributors
Mfr Name: GeneSiC Semiconductor
GeneSiC Semiconductor
Schottky diode module rated at 60V repetitive peak reverse voltage and 200A average forward current. Features a common cathode configuration in a Twin Tower chassis mount package.
✓ Total Stock: 50,000 pcs

MBR20060CT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
50,000 pcs
On Request
50000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MBR20060CT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Mounting Type
Operating Temperature
Speed
Storage Temperature
Supplier Device Package
Technology
Voltage
View Similar Products (0)

MBR20060CT Description

Short technical summary and product information.

The MBR20060CT is a Schottky diode module designed for high current rectification applications. It offers a repetitive peak reverse voltage of 60V and an average forward current of 200A at a case temperature of 125°C. The forward voltage is typically 0.75V maximum at 100A and 25°C, ensuring low conduction losses. The module can handle peak forward surge currents up to 1500A for 8.3ms half sine wave, providing robust surge capability.



The device operates over a junction temperature range of -55°C to 150°C and features a low thermal resistance of 0.45°C/W from junction to case per leg. It is configured as a common cathode pair of Schottky diodes, offering fast switching with recovery times under 500ns. The module is housed in a Twin Tower package designed for chassis mounting, suitable for high power density designs.



Typical applications include output rectification in switch mode power supplies, DC-DC converters, and battery charging systems where high efficiency and reliability are required. The module is not ESD sensitive and offers high surge capability.

MBR20060CT Quick Information

Product Type: Schottky Diode Module
Series: MBR20045CT thru MBR200100CTR
Canonical Name: MBR20060CT Schottky Diode Module, 60V VRRM, 200A IF(AV), Twin Tower Package
Subcategory: Rectifier Diode Array

MBR20060CT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MBR20060CT Features

  • 60V repetitive peak reverse voltage rating.
  • 200A average forward current capability.
  • Low forward voltage drop of 0.75V.
  • High surge current handling of 1500A.
  • Chassis mount Twin Tower package.

MBR20060CT Applications

  • Used in high current power rectification.
  • Suitable for switch mode power supplies.
  • Ideal for DC-DC converter output stages.
  • Applied in battery charging systems.

MBR20060CT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak reverse voltage?

60V.

What is the average forward current rating?

200A at TC=125°C.

What is the forward voltage drop?

0.75V maximum at 100A and 25°C.

What is the peak forward surge current?

1500A for 8.3ms half sine wave.

What is the operating temperature range?

-55 to 150°C.

What is the package type?

Twin Tower, chassis mount.

What is the diode configuration?

1 pair common cathode.
