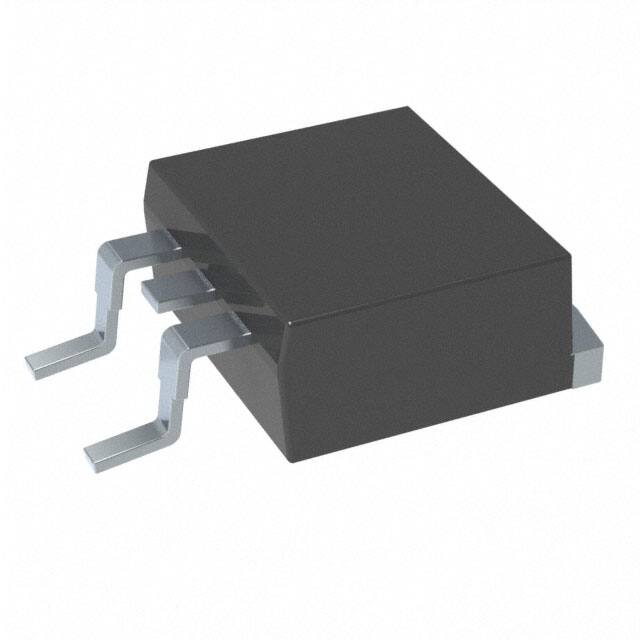

MBR1060DC_R2_00001 The PANJIT MBR1060DC is a 60V, 10A Schottky barrier rectifier array in a D2PAK surface mount package. It features low forward voltage (0.75V at 5A) and high surge current capability (150A).
Mfr Part #:

MBR1060DC_R2_00001

Available from 1 distributors
Mfr Name: PANJIT
PANJIT
The PANJIT MBR1060DC is a 60V, 10A Schottky barrier rectifier array in a D2PAK surface mount package. It features low forward voltage (0.75V at 5A) and high surge current capability (150A).
✓ Total Stock: 40,000 pcs
$ Price Range: $0.23 - $1.04

MBR1060DC_R2_00001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
40,000 pcs
On Request
40000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MBR1060DC_R2_00001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Halogen Free
Lead Style
Mounting Type
Operating Temperature
Peak Forward Surge Current
Speed
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Termination Style
Voltage
Weight
View Similar Products (0)

MBR1060DC_R2_00001 Description

Short technical summary and product information.

The PANJIT MBR1060DC is a Schottky barrier rectifier array consisting of two diodes in a common cathode configuration. It is rated for a maximum repetitive peak reverse voltage of 60V and an average forward current of 10A (single phase, half wave, 60Hz, resistive or inductive load; derate 20% for capacitive load). The device offers a low forward voltage of 0.75V maximum at 5A per leg and a high surge current capability of 150A (8.3ms single half sine-wave). Reverse current is 0.05mA at 25°C and 20mA at 100°C. The operating junction temperature range is -65°C to +175°C. The device is housed in a D2PAK (TO-263) surface mount package with solder plated terminals. It is RoHS3 compliant and uses a green molding compound per IEC 61249. Typical applications include low voltage, high frequency inverters, freewheeling diodes, and polarity protection.

MBR1060DC_R2_00001 Quick Information

Product Type: Schottky Barrier Rectifier Array
Series: MBR1040DC Series
Canonical Name: PANJIT MBR1060DC Schottky Barrier Rectifier Array, 60V, 10A, D2PAK
Subcategory: Rectifier Arrays

MBR1060DC_R2_00001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

MBR1060DC_R2_00001 Estimated Pricing

Qty Low High
1+ $1.04 $1.04
10+ $0.65 $0.65
100+ $0.42 $0.42
800+ $0.30 $0.30
1,600+ $0.27 $0.27
2,400+ $0.26 $0.26
4,000+ $0.24 $0.24
5,600+ $0.23 $0.23
8,000+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

MBR1060DC_R2_00001 Features

  • 60V repetitive peak reverse voltage rating.
  • 10A average forward current capability.
  • Low forward voltage of 0.75V at 5A.
  • High surge current rating of 150A.
  • Surface mount D2PAK package.

MBR1060DC_R2_00001 Applications

  • Used in low voltage high frequency inverters.
  • Ideal for freewheeling diode applications.
  • Suitable for polarity protection circuits.

MBR1060DC_R2_00001 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak reverse voltage of the MBR1060DC?

The maximum repetitive peak reverse voltage (VRRM) is 60V.

What is the average forward current rating?

The maximum average forward current (IF(AV)) is 10A for single phase, half wave, 60Hz, resistive or inductive load. Derate by 20% for capacitive load.

What is the forward voltage drop at 5A?

The maximum forward voltage per leg is 0.75V at 5A and 25°C junction temperature.

What package is the MBR1060DC available in?

It is available in a D2PAK (TO-263-3) surface mount package.

What is the peak forward surge current rating?

The peak forward surge current (IFSM) is 150A for an 8.3ms single half sine-wave.
