| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,500 pcs
|
12500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current - Average Rectified (Io) | |
| Current - Reverse Leakage (Maximum @ VR = rated VR, TJ = 125 °C) | |
| Halogen Free | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Peak Non-Repetitive Surge Current (IFSM) | |
| Series Inductance | |
| Speed | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Termination Style | |
| Thermal Resistance - Junction to Case | |
| Thermal Resistance Case to Heat Sink | |
| Voltage | |
| Voltage - DC Reverse (Vr) (Max) | |
| Voltage - Forward (Maximum @ 10 A, Pulse, TJ = 125 °C) | |
| Voltage Rate of Change (dv/dt) | |
| Weight |

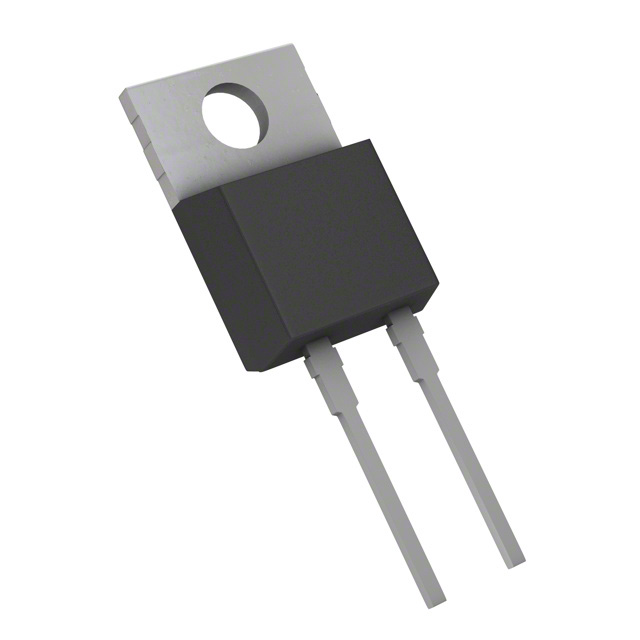

The MBR10100 is a Schottky rectifier diode designed for high-efficiency power conversion applications. It offers a maximum reverse voltage of 100V and an average rectified forward current of 10A at a case temperature of 105°C with a 50% duty cycle rectangular waveform.
The device features a low forward voltage drop of 0.85V at 10A and 25°C, and 0.70V at 125°C, which minimizes conduction losses. Reverse leakage current is typically 1mA at 25°C and 6mA at 125°C at rated reverse voltage. The diode can handle non-repetitive surge currents up to 150A (8.3ms half-sine pulse), making it robust for transient conditions.
The MBR10100 is housed in a TO-220AC through-hole package, which provides excellent thermal performance with a junction-to-case thermal resistance of 2.0°C/W. The operating junction temperature range is -55°C to 150°C. Typical applications include switching power supplies, free-wheeling diodes, converters, and reverse battery protection circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.99 | $1.99 |
| 50+ | $0.95 | $0.95 |
| 100+ | $0.85 | $0.85 |
| 500+ | $0.67 | $0.67 |
| 1,000+ | $0.62 | $0.62 |
| 2,000+ | $0.57 | $0.57 |
| 5,000+ | $0.52 | $0.52 |
| 10,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (VR) is 100V.
The average rectified forward current (Io) is 10A at Tc=105°C with 50% duty cycle rectangular waveform.
The forward voltage drop is 0.85V maximum at 10A and 25°C, and 0.70V maximum at 10A and 125°C.
The MBR10100 is available in a TO-220AC package (equivalent to TO-220-2) with through-hole mounting.
The operating junction temperature range is -55°C to 150°C.
The peak non-repetitive surge current (IFSM) is 150A for an 8.3ms half-sine pulse.
The typical thermal resistance from junction to case (RθJC) is 2.0°C/W for DC operation.
