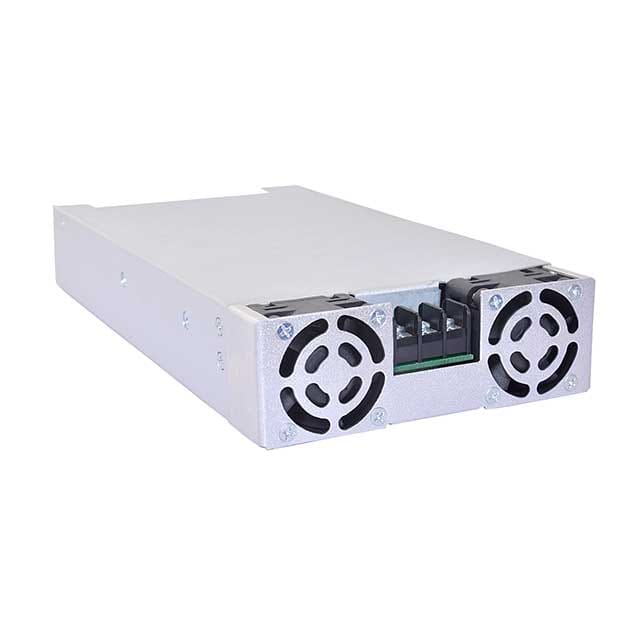

The Bel Power Solutions MBE1000-1T24 is a 1000W AC/DC converter designed for chassis mounting. It offers a wide input voltage range of 85 to 264 VAC and provides a single output voltage from 12 to 58 VDC.
Key electrical specifications include a current rating of 41.66A and an efficiency of 93%. The converter operates within a temperature range of -40°C to 70°C with fan cooling. Features such as adjustable output, load sharing, PFC, remote on/off, remote sense, and standby output are included.
This product is approved by CE and NEMKO. Its dimensions are 241.6mm x 127.0mm x 41.0mm. The MBE1000 series is noted for its application in medical devices.
Note: This product has been discontinued. Recommended replacements include the EOS Power MVPS1000 Series.
The MBE1000-1T24 has a power output of 1000W.
The input voltage range is 85 to 264 VAC.
The output voltage is adjustable from 12 to 58 VDC.
The maximum current rating is 41.66 A.
The operating temperature range is -40°C to 70°C.
The MBE1000-1T24 is cooled by a fan.
The MBE1000-1T24 uses chassis mount.
