| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

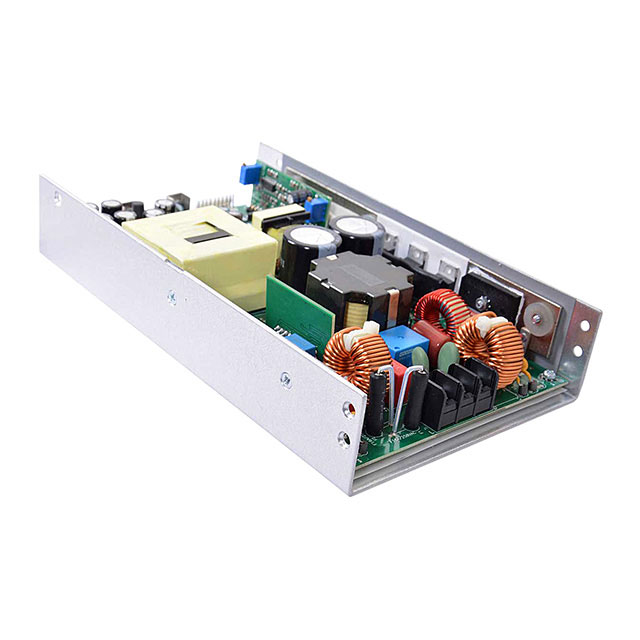

The Bel Power Solutions MBC800-1T48 is an open frame AC DC converter designed for various applications, including medical use. It provides a single 48V output with a power rating of 600W, which can be boosted to 800W with forced air.
Key electrical specifications include a high efficiency of 93% and a universal input voltage range of 85-264 VAC or 120-390 VDC. Features such as adjustable output, load sharing, PFC, remote on/off, remote sense, and a standby output enhance its functionality.
Mechanically, this converter is designed for chassis mounting and measures 216.0mm in length, 127.0mm in width, and 41.0mm in height. It operates within a temperature range of -40°C to 70°C with derating. The isolation voltage is rated at 4.245 kV.
Compliance is indicated by CE, cUL, Nemko, and UL approvals. The RoHS status is RoHS3 Compliant, and REACH status is REACH Unaffected. The packaging is a standard box.
-40°C to 70°C with derating.
85 to 264 VAC and 120 to 390 VDC.
Open frame, chassis mount.
93%.
4.245 kV.
48V.
Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input.
