| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

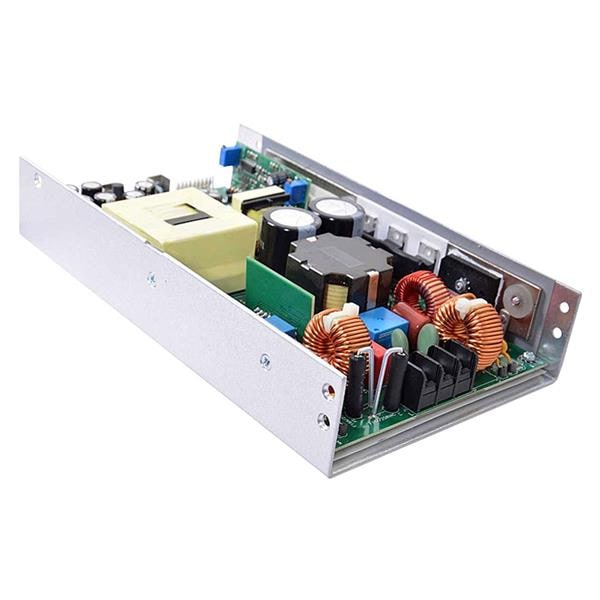

The Bel Power Solutions MBC800-1T24 is an open-frame AC-DC converter designed for medical applications. It delivers up to 800W of output power with a single 24VDC output channel capable of 33.33A.
This converter operates with an input voltage range of 85 to 264 VAC or 120 to 390 VDC, and accepts input frequencies from 47 to 63 Hz. It boasts an efficiency of 88% and provides regulated output. The isolation voltage is rated at 4.245 kVAC.
Mechanical specifications include dimensions of 216 mm in width, 41 mm in height, and 127 mm in length. The operating temperature range is from -40°C to +70°C. The unit weight is 1.1 kg. Mounting is chassis style.
Compliance includes ANSI/AAMI 60601-1 and EN/IEC60601-1 approvals. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
The output power is 800 W.
The output voltage is 24 VDC.
The input voltage range is 85 VAC to 264 VAC and 120 VDC to 390 VDC.
The efficiency is 88 %.
The dimensions are 216 mm in width, 41 mm in height, and 127 mm in length.
The operating temperature range is -40°C to +70°C.
The MBC800-1T24 is designed for the Medical industry.
