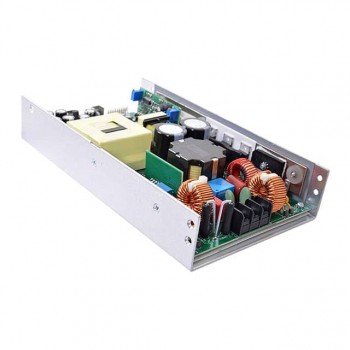

The Bel Power Solutions MBC800-1T12 is an open frame AC DC converter designed for medical applications. It operates with an input voltage range of 85-264 VAC or 120-390 VDC and provides a single 12V output at up to 25A.
This power supply delivers 300W of power, with a forced air rating of 400W. It boasts a high efficiency of 93% and features universal input, adjustable output, load sharing, PFC, remote on/off, and remote sense capabilities. The isolation voltage is rated at 4.245 kV.
With dimensions of 8.50" L x 5.00" W x 1.61" H (216.0mm x 127.0mm x 41.0mm), the MBC800-1T12 is designed for chassis mounting. It operates within a temperature range of -40°C to 70°C with derating. The unit is approved by CE, cUL, Nemko, and UL.
Key specifications include a 12V output, 25A current capability, 300W power rating, and 93% efficiency. The open frame construction and chassis mount type make it suitable for integration into various systems.
85 ~ 264 VAC, 120 ~ 390 VDC.
Box.
-40°C ~ 70°C (With Derating).
12V at 25A.
93%.
CE, cUL, Nemko, UL.
4.245 kV.
