| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| Type | |
| Voltage | |
| Width |

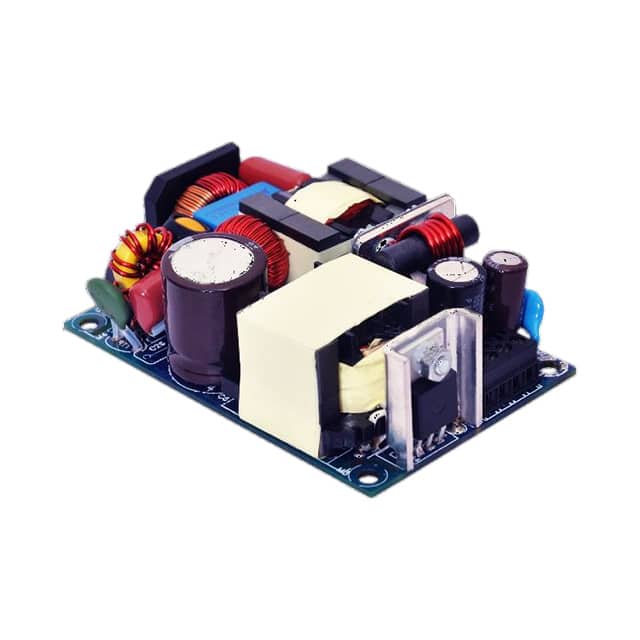

The Bel Power Solutions MBC75-1T30L is a 75W open frame AC/DC converter designed for various applications including medical, telecom, and industrial equipment. It operates with a universal AC input range of 85-264 VAC and provides a single, isolated 30V output.
Key electrical specifications include an efficiency of up to 91% for the 30V output, a power factor greater than 0.95 at full load, and a low no-load power consumption of less than 0.3W. The converter offers robust protection features such as over-current, over-voltage, and short-circuit protection.
With a compact 3 x 2 x 1 inch footprint, the MBC75-1T30L is suitable for chassis mounting. It operates across a wide temperature range of -40°C to 70°C with derating. The unit is approved to EN/IEC 60601-1 medical standards and provides 2 x MOPP isolation, making it suitable for BF applications. A Class II option is also available.
This series boasts a high MTBF of 2 million hours, ensuring reliability in demanding environments. It is RoHS3 compliant and meets REACH unaffected status.
The output voltage is 30V.
The maximum output power is 75W with convection cooling.
The input voltage range is 85-264 VAC.
The efficiency is 91% for the 24V and 30V outputs.
The operating temperature range is -40°C to 70°C with derating.
Yes, it is approved to EN/IEC 60601-1 and suitable for BF applications.
The dimensions are 76.2mm x 50.8mm x 25.4mm (3.00" L x 2.00" W x 1.00" H).
