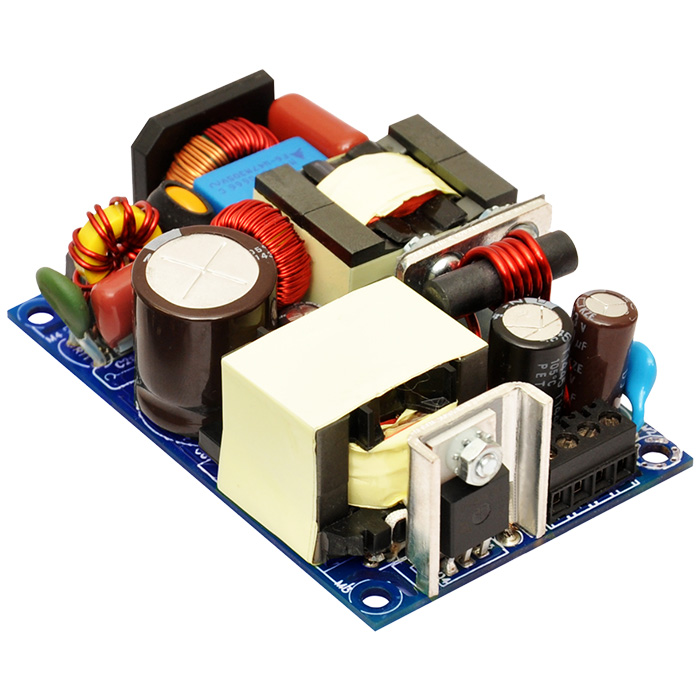

The Bel Power Solutions MBC75-1015L-2 is an open frame AC/DC converter designed for demanding applications. It delivers 75 watts of output power with a 15V single output voltage. The unit accepts a wide universal AC input range of 85 to 264 VAC, making it suitable for global use.
Key electrical specifications include an efficiency of up to 90% for the 15V output, a hold-up time greater than 16 ms, and comprehensive protection features such as over-current, over-voltage, and short-circuit protection. The operating temperature range is -40°C to 70°C with derating.
This converter is built with a compact 3 x 2 x 1 inch form factor and is designed for chassis mounting. It meets medical standards EN/IEC 60601-1 and provides 2 x MOPP isolation, making it ideal for medical equipment, as well as telecom, datacom, and industrial applications. The product is CE marked and RoHS3 compliant.
Note: This product has been discontinued. Recommended replacements include the MWLP75 Series from EOS Power.
85-264 VAC.
15 V.
-40°C to 70°C with derating.
Open frame, chassis mount. Dimensions: 76.2mm x 50.8mm x 25.4mm.
Over current (>110%), over voltage (110-140% latch type), and short circuit (hiccup mode) protection.
Yes, approved to EN/IEC 60601-1 with 2xMOPP isolation for Class I and Class II applications, suitable for BF applications.
90%.
