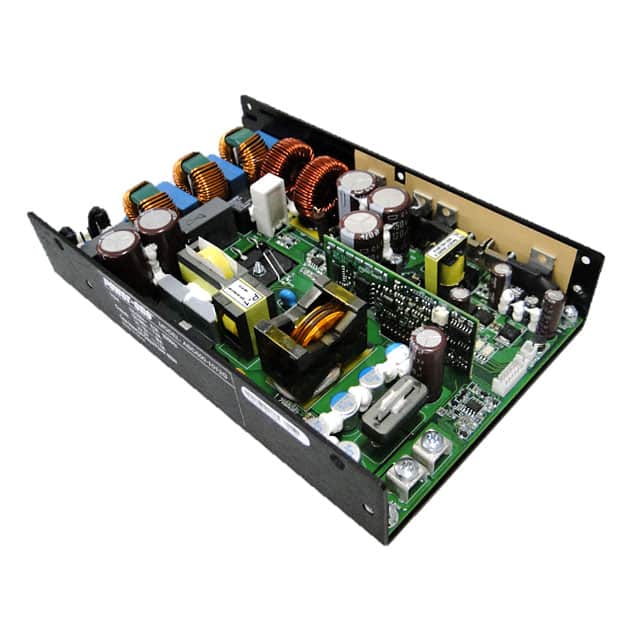

The Bel Power Solutions MBC600-1024G is an open frame AC/DC power supply offering 600W of output power and a 24VDC output voltage at 25A. It features a wide universal input voltage range of 90-277 VAC, making it suitable for global applications.
Designed for demanding applications, this converter boasts high efficiency up to 94.0% and active power factor correction. It includes features such as parallel operation with active current sharing, digital control, and comprehensive protection (OTP, OCP, OVP, SCP). The unit is fully protected and includes a Power Management Bus for control, programming, and monitoring.
With dimensions of 203.2 x 127 x 40.6 mm, it is designed for chassis mounting and utilizes a U-chassis package with a Molex header connector. The MBC600-1024G is approved to the latest medical standards (EN/IEC 60601-1), providing 2 x MOPP isolation for Class I & Class II applications, making it ideal for medical, telecom, datacom, and industrial equipment.
It operates within a temperature range of -25°C to +70°C with derating and meets Class B EMI/RFI standards per CISPR 22 and EN 55022. The unit also includes a 5V standby output and a 12V fan output.
The output voltage is 24 VDC.
The maximum output current is 25 A.
The input voltage range is 90 to 277 VAC.
The maximum power output is 600W with forced air cooling.
The operating temperature range is -25°C to +70°C with derating.
The dimensions are 203.2mm (8.00") x 127.2mm (5.01") x 40.6mm (1.60").
It uses chassis mount.
Yes, it is designed and approved to the latest medical standards (EN/IEC 60601-1) and provides 2 x MOPP isolation.
