| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Max Load | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Ripple | |
| Type | |
| Voltage | |
| Width |

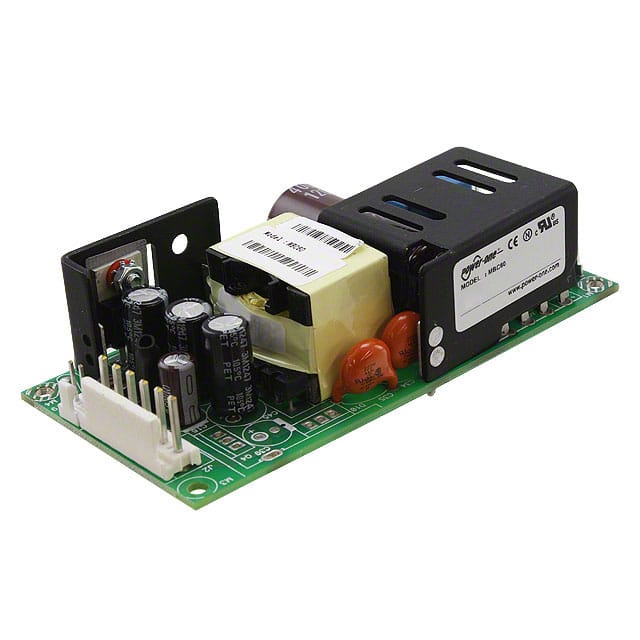

The Bel Power Solutions MBC60-1005G is an open frame AC DC converter designed for medical applications. It operates with a universal input voltage range of 90-264 VAC and delivers up to 60W of output power at 5.1V with a maximum current of 10A.
This converter boasts an efficiency of 85% and features like adjustable output and remote sense. Its compact form factor measures 4.00 x 2.00 x 1.20 inches (101.6 x 50.8 x 30.5mm), making it suitable for various integration needs. The device is approved by CE and CSA.
Key specifications include a low leakage current of less than 250 µA and a no-load power consumption of less than 0.3W. The operating temperature range is -20°C to 70°C with derating. It is designed for chassis mounting.
Compliance includes RoHS3, REACH Unaffected, and MSL Level 1. The isolation voltage is rated at 4.242 kV.
The MBC60-1005G provides a 5.1V output voltage with a maximum current of 10A.
The MBC60-1005G has an output power rating of 60W.
The MBC60-1005G accepts a universal input voltage range of 90-264 VAC.
The typical efficiency of the MBC60-1005G is 85%.
The dimensions of the MBC60-1005G are 101.6mm x 50.8mm x 30.5mm.
The operating temperature range for the MBC60-1005G is -20°C to 70°C with derating.
The MBC60-1005G is approved by CE and CSA.
