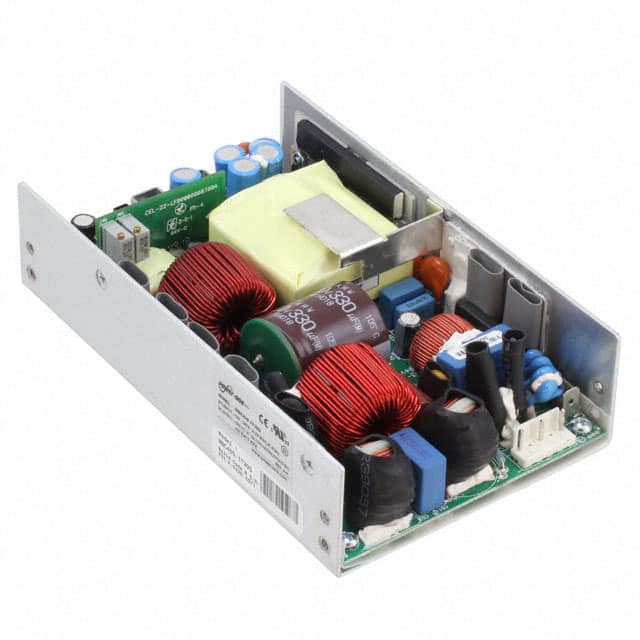

The Bel Power Solutions MBC450-1T30G-I-S is an open-frame AC/DC power supply designed for medical applications. It offers a 30VDC output voltage and can deliver up to 450W of power with forced air cooling. The unit accepts a wide universal input voltage range of 90-264 VAC.
Key features include a Class B EMI rating, dual fusing for safety, and compliance with EN/IEC 60601-1 medical standards, providing 2 x MOPP isolation. The converter has an efficiency of up to 86% and operates within a temperature range of 0°C to 70°C with derating. Its compact dimensions of 165.1mm x 101.6mm x 40.6mm make it suitable for integration into various medical devices.
This power supply is approved by CE, cUL, Nemko, and UL, ensuring reliability and safety for demanding applications such as diagnostic equipment, drug pumps, dialysis machines, and hospital beds. The open-frame construction and chassis mount type facilitate easy integration into system designs.
The MBC450-1T30G-I-S provides a 30VDC output voltage.
This AC/DC converter can deliver up to 450W of output power.
The input voltage range is 90-264 VAC.
The operating temperature range is 0°C to 70°C, with derating.
It is approved to EN/IEC 60601-1 medical standards and has CE, cUL, Nemko, and UL agency approvals.
This power supply is designed for medical applications.
