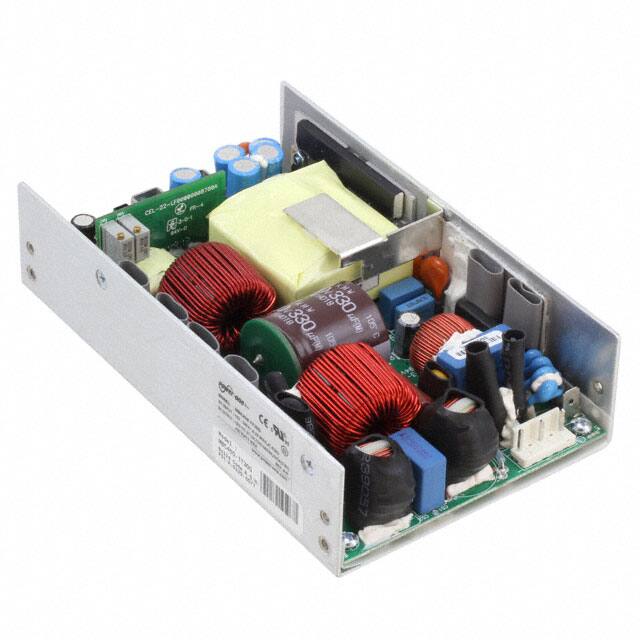

The Bel Power Solutions MBC450-1T30G is an open-frame AC/DC power supply designed for medical applications. It operates with a universal input voltage range of 90-264 VAC and provides a single 30VDC output.
Key electrical specifications include a maximum output power of 450W (with forced air) and a peak power capability of 500W for 5 seconds. The efficiency is rated at 83% typical at full load. It also features a 5V standby output and a 12V fan output.
This converter is designed for chassis mounting and has dimensions of 165.1mm x 101.6mm x 41.0mm. It meets medical standards and provides 2 x MOPP isolation for Class I applications. The operating temperature range is 0°C to 70°C with derating.
Applications include diagnostic equipment, drug pumps, dialysis machines, hospital beds, home health care devices, monitoring equipment, imaging systems, and therapy devices. It is CE marked and RoHS3 compliant.
The MBC450-1T30G has a nominal output voltage of 30 VDC.
The maximum output power is 450W with forced air, and it can provide 500W peak for 5 seconds.
The input voltage range is 90-264 VAC.
The efficiency is typically 83% at full load.
The dimensions are 165.1mm x 101.6mm x 41.0mm.
The operating temperature range is 0°C to 70°C with derating.
It is CE marked and approved to EN/IEC 60601-1 standards.
