| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

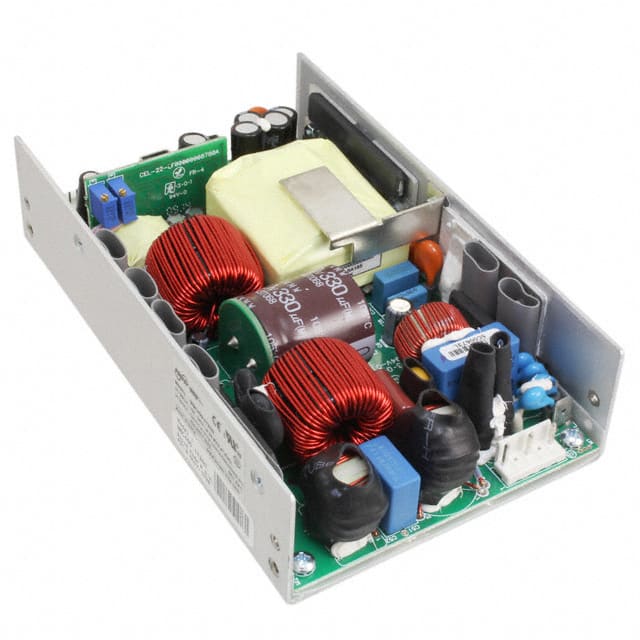

The Bel Power Solutions MBC450-1T24G is an open-frame AC/DC power supply designed for medical applications. It offers a universal input voltage range of 90-264 VAC and provides a 24VDC output at up to 18.75A, delivering 300W of continuous power. The unit is approved to EN/IEC 60601-1 medical standards, offering 2 x MOPP isolation for Class I applications.
Key features include Class B EMI and Medical (BF) safety approvals, dual fusing for input protection, and a wide operating temperature range of 0°C to 70°C with derating. The dimensions are 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm). This converter is suitable for monitoring, home health equipment, and surgical devices.
Additional options such as side fan, top fan, and current sharing are available by modifying the part number. The power supply also includes features like adjustable output, DC input capability, remote sense, and a standby output.
The output voltage is 24 VDC.
The maximum output current is 18.75 A.
The continuous power rating is 300W, with a forced air rating of 450W.
The input voltage range is 90-264 VAC.
The operating temperature range is 0°C to 70°C, with derating.
It is approved to EN/IEC 60601-1 medical standards and provides 2 x MOPP isolation.
The dimensions are 6.50 inches long, 4.00 inches wide, and 1.61 inches high.
