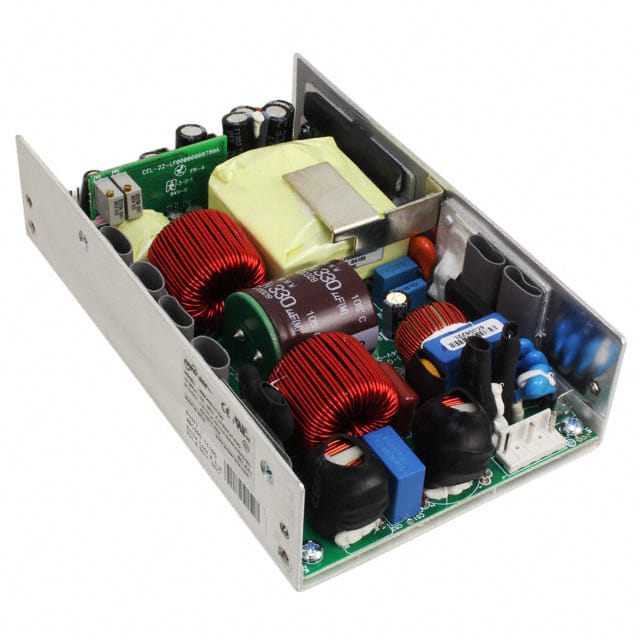

The Bel Power Solutions MBC450-1T15G is an open frame AC/DC power supply designed for medical applications. It features a universal 90-264 VAC input range and provides a single 15V DC output at up to 30A.
With a maximum output power of 450W (forced air) and 250W (convection), this converter offers a peak power capability for demanding applications. It boasts an efficiency of 83% at full load and includes features such as adjustable output, DC input capability, remote sense, and a standby output.
The unit is approved to EN/IEC 60601-1 standards, providing 2 x MOPP isolation for Class I applications. It has a compact size of 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm) and is designed for chassis mounting.
Key specifications include a 4.242 kV isolation voltage and an operating temperature range of 0°C to 70°C with derating. The MBC450-1T15G is CE marked and RoHS3 compliant.
The nominal output voltage is 15 VDC.
The maximum output current is 30 A.
The input voltage range is 90-264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The package type is open frame, chassis mount, supplied in a box.
The typical efficiency is 86% at full load on 120 VAC.
