| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

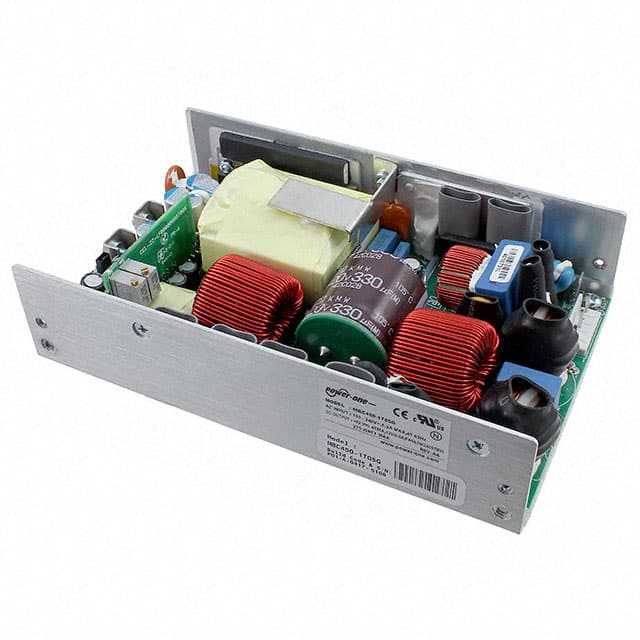

The Bel Power Solutions MBC450-1T05G is an open frame AC/DC converter designed for medical applications. It provides a single 5VDC output with a maximum current of 31.0A and a nominal power of 275W convection cooled, or 450W forced air.
This converter operates with a universal input voltage range of 90-264 VAC and features an efficiency of 83% at full load. Key specifications include an isolation voltage of 4.242 kV and an operating temperature range of 0°C to 70°C with derating.
The physical dimensions are 165.1mm x 101.6mm x 41.0mm (6.50" x 4.00" x 1.61"). It is designed for chassis mounting and comes packaged in a box. The unit is CE marked and approved to EN/IEC 60601-1 standards, providing 2 x MOPP isolation for Class I applications.
Additional features include dual fusing for input protection, adjustable output, DC input capability, remote sense, and a standby output. It also meets RoHS3, REACH Unaffected, and MSL 1 standards.
The output voltage is 5 VDC.
The maximum output current for the 5V output is 31.0 A.
The power rating is 155W convection cooled and 275W forced air.
The input voltage range is 90-264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 165.1mm x 101.6mm x 41.0mm (6.50" x 4.00" x 1.61").
It is approved to EN/IEC 60601-1 and is CE marked.
