| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

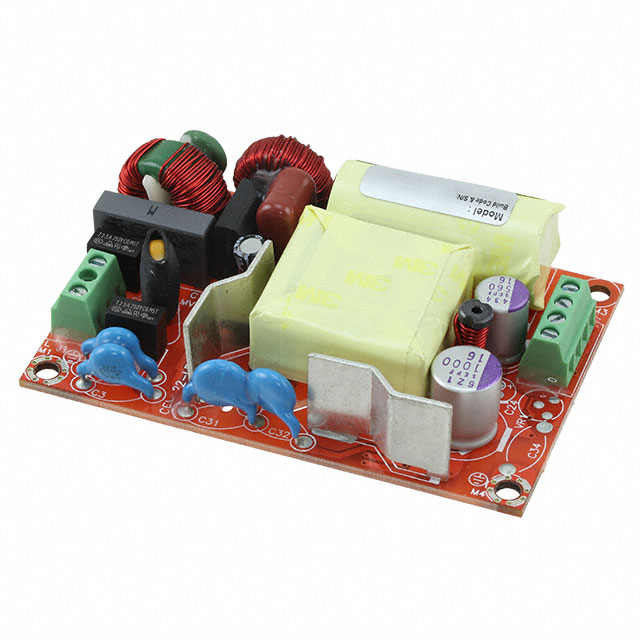

This MBC41-1T30L-2 from Bel Power Solutions is an open frame AC/DC converter designed for various applications, including medical, telecom, datacom, and industrial equipment. It offers a 40W output power with natural convection cooling and a wide universal AC input range of 85-264 VAC.
The converter provides a single 30V output at 1.33A, with a line regulation of ±0.5% and load regulation of ±1%. It boasts 85% typical efficiency and a low no-load power consumption of less than 0.3W. The operating temperature range is -40°C to 70°C with derating.
Designed for easy integration, this unit has a compact form factor measuring 76.2mm x 50.8mm x 24.7mm. It meets medical standards EN/IEC 60601-1 and provides 2 x MOPP isolation. Approval agencies include CE, cUL, Nemko, and UL.
The input voltage range is 85-264 VAC.
The output voltage is 30V with a nominal current of 1.33A.
The operating temperature range is -40°C to 70°C with derating.
The mounting type is chassis mount.
Typical efficiency is 85%.
The isolation voltage is 4 kV.
The MTBF is 2 million hours per Telcordia SR-332.
