| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

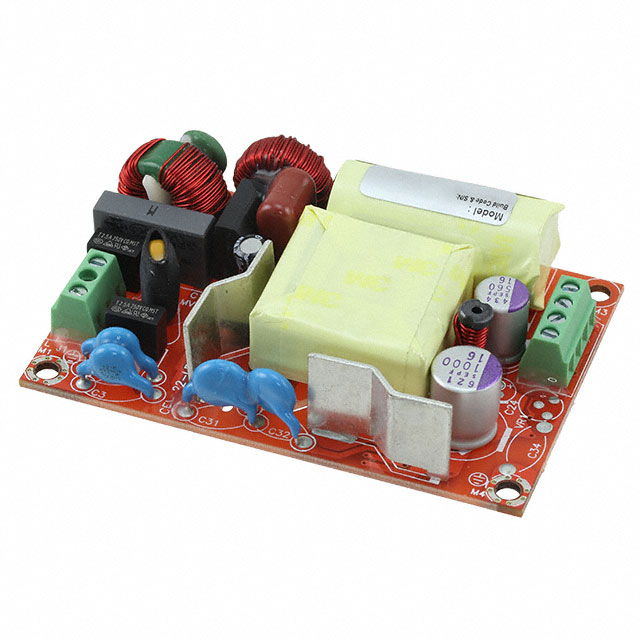

The Bel Power Solutions MBC41-1T24L-2 is an open frame AC/DC converter designed for various applications, including medical, telecom, datacom, and industrial equipment. It provides a 24V output with a maximum current of 1.67A, delivering 40W of power.
This converter features a wide universal AC input range of 85-264 VAC and operates with natural convection cooling. It boasts an efficiency of 85% typical and a low no-load power consumption of less than 0.3W. The operating temperature range is -40°C to 70°C with derating.
Designed for easy integration, the MBC41-1T24L-2 has a compact form factor measuring 76.2mm x 50.8mm x 24.7mm. It is approved by CE, cUL, Nemko, and UL, and offers 2 x MOPP isolation. The mounting type is chassis mount.
The output voltage is 24V.
The power rating is 40W.
The input voltage range is 85 - 264 VAC.
The operating temperature range is -40°C to 70°C.
It is approved by CE, cUL, Nemko, and UL.
It is ideal for medical, telecom, datacom, and industrial equipment.
The RoHS status is RoHS3 Compliant.
