| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

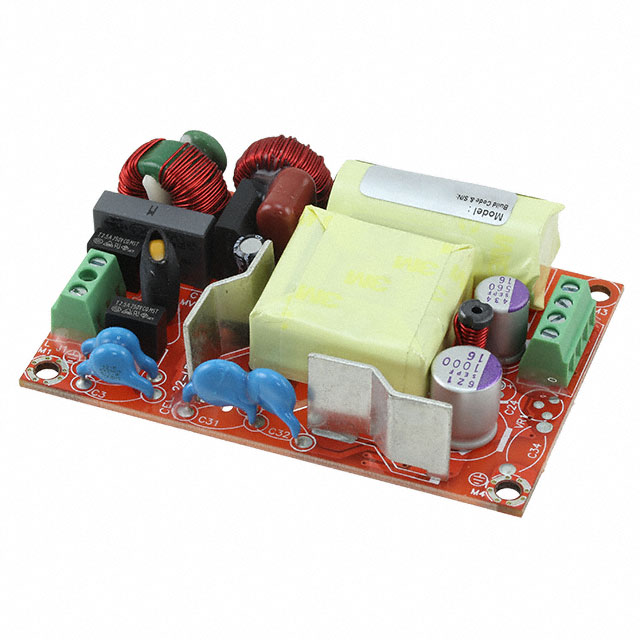

The Bel Power Solutions MBC41-1T15L-2 is an open frame AC/DC power supply designed for various applications, including medical, telecom, datacom, and industrial equipment. It offers a 15V output voltage with a maximum current of 2.67A, providing a total output power of 40W.
This converter operates with a wide universal AC input range of 85-264 VAC and features 85% typical efficiency. The operating temperature range is -40°C to 70°C with derating. It meets medical standards and provides 2x MOPP isolation.
The unit has a compact form factor with dimensions of 76.2mm x 50.8mm x 24.7mm and is suitable for chassis mounting. It is approved by CE, cUL, Nemko, and UL agencies, making it a reliable choice for demanding applications requiring safety and performance.
The input voltage range is 85-264 VAC.
The output voltage is 15 V and the output current is 2.67 A.
The operating temperature range is -40°C to 70°C with derating.
The converter is chassis mountable and comes in an open frame package.
The typical efficiency is 85%.
The isolation voltage is 4 kV.
The MTBF is 2 million hours per Telcordia SR-332.
