| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

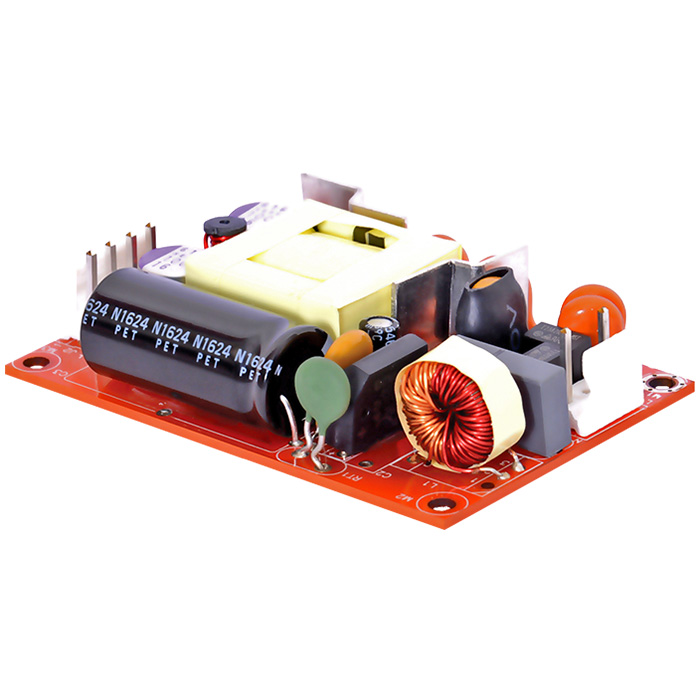

The Bel Power Solutions MBC41-1T15L is an open-frame AC/DC converter from the MBC41 series, designed for medical, telecom, datacom, and industrial applications. It offers a 40W output power with natural convection cooling and a universal AC input range of 85-264 VAC.
Key electrical specifications include a 15V output voltage, 2.67A output current, and 85% typical efficiency. The converter operates within a wide temperature range of -40°C to 70°C. It is approved to medical standards EN/IEC 60601-1, providing 2 x MOPP isolation for Class I & Class II applications.
The unit has a compact form factor of 3 x 2 x 0.75 inches and is available in a chassis mount configuration. It also features dual fusing and a low no-load power consumption of less than 0.3W. The MTBF is rated at 2 million hours per Telcordia-SR332-issue 3.
This power supply is suitable for various medical equipment such as diagnostic devices, drug pumps, monitoring systems, and dialysis machines, as well as portable equipment.
The MBC41-1T15L has a nominal output voltage of 15V.
The maximum output current for the MBC41-1T15L is 2.67A.
The MBC41-1T15L has a power rating of 40W.
The operating temperature range for the MBC41-1T15L is -40°C to 70°C.
The MBC41-1T15L is approved by CE, cUL, Nemko, and UL.
The MTBF for the MBC41-1T15L is 2 million hours, based on Telcordia-SR332-issue 3.
The MBC41-1T15L has a form factor of 3 x 2 x 0.75 inches.
