| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

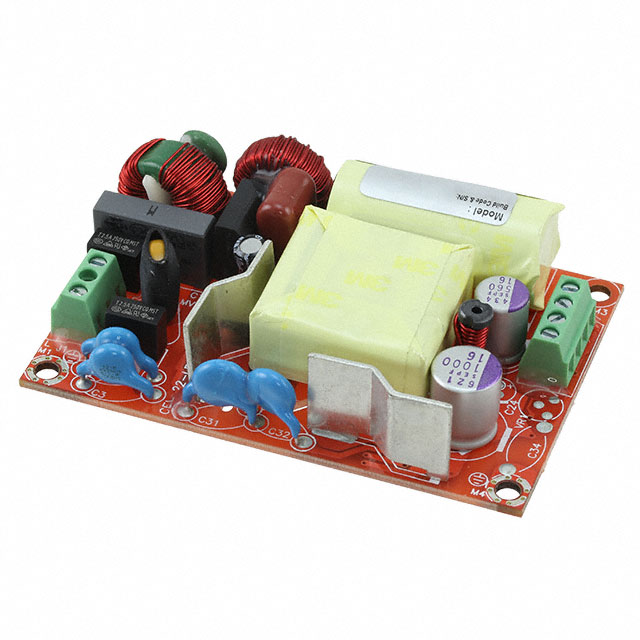

The Bel Power Solutions MBC41-1T12L-2 is an open frame AC/DC converter designed for various applications, including medical, telecom, datacom, and industrial equipment. It features a wide universal AC input range of 85-264 VAC and provides a single 12V output at 3.33A, delivering up to 40W of power with natural convection cooling.
This series is approved to medical standards EN/IEC 60601-1, offering 2x MOPP isolation suitable for Class I and Class II applications. The converter boasts 85% typical efficiency and operates within a temperature range of -40°C to 70°C with derating. Its compact form factor measures 3.00" x 2.00" x 0.97" (76.2mm x 50.8mm x 24.7mm), making it suitable for embedded integration.
Key electrical specifications include a low no-load power consumption of less than 0.3W, line regulation of ±0.5%, and load regulation of ±1%. The MBC41-1T12L-2 also features a 4 kV isolation voltage and a typical MTBF of 2 million hours (Telcordia -SR332-issue 3).
The converter is available in a chassis mount configuration and complies with RoHS3 standards. Its robust design and medical approvals make it a reliable choice for demanding applications requiring stable power conversion.
The MBC41-1T12L-2 provides a nominal output voltage of 12V and a nominal output current of 3.33A.
The MBC41-1T12L-2 has an output power rating of 40W.
The MBC41-1T12L-2 accepts a universal input voltage range of 85 to 264 VAC.
The typical efficiency of the MBC41-1T12L-2 is 85%.
The operating temperature range for the MBC41-1T12L-2 is -40°C to 70°C, with derating.
The MBC41-1T12L-2 is approved by CE, cUL, Nemko, and UL agencies.
The dimensions of the MBC41-1T12L-2 are 76.2mm x 50.8mm x 24.7mm (3.00" L x 2.00" W x 0.97" H).
