MBC41-1T05L
Bel Power Solutions
The Bel Power Solutions MBC41-1T05L is a 40W AC-DC converter with a 5V output. It features a universal 85-264 VAC input and an open frame, chassis mount design.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

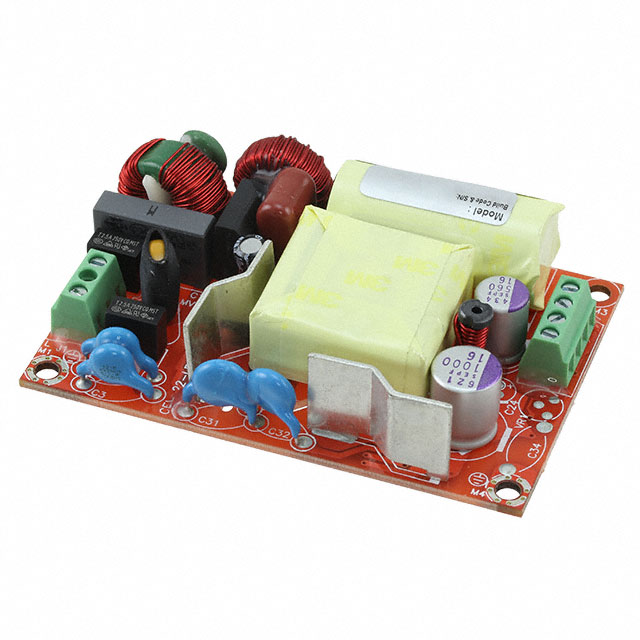

The Bel Power Solutions MBC41-1T05L-2 is an open frame AC/DC converter designed for various applications including medical, telecom, datacom, and industrial equipment. It offers a 40W output power with natural convection cooling and a wide universal AC input range of 85-264 VAC.
Key electrical specifications include a 5V output voltage, 5A current capability, and 85% typical efficiency. The converter operates within a -40°C to 70°C temperature range and provides 4kV isolation. It is approved by CE, cUL, Nemko, and UL.
The unit features a compact form factor measuring 76.2mm x 50.8mm x 24.7mm and is available in a chassis mount configuration. It is designed to meet medical standards (EN/IEC 60601-1) with 2x MOPP isolation, making it suitable for demanding applications requiring reliable power conversion.
The MBC41-1T05L-2 has a nominal output voltage of 5V.
The maximum output current for the MBC41-1T05L-2 is 5A.
This converter has a power rating of 40W.
The input voltage range is 85-264 VAC.
The operating temperature range is -40°C to 70°C.
The dimensions are 76.2mm x 50.8mm x 24.7mm.
Approval agencies include CE, cUL, Nemko, and UL.
