| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Hold Up Time | |
| Input Voltage | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MOPP | |
| MTBF | |
| Medical Grade | |
| Medical Standards | |
| Mounting Type | |
| No Load Power | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Rise Time | |
| Storage Temperature | |
| Switching Frequency | |
| Transient Response | |
| Type | |
| Voltage | |
| Width |

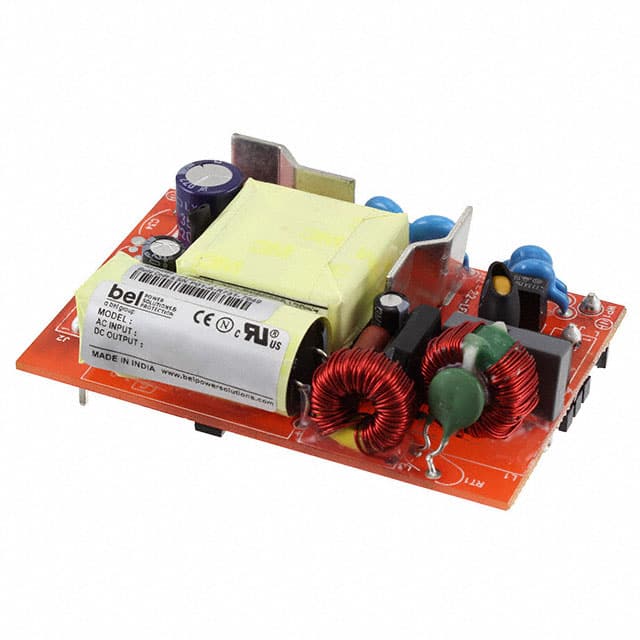

The Bel Power Solutions MBC41-1024P is an open frame AC/DC converter designed for medical and industrial applications. It provides a 24V output voltage with a maximum output power of 40W and an output current of 1.67A. The converter accepts a wide universal input voltage range of 85-264 VAC.
This series is approved to medical standards EN/IEC 60601-1, offering 2 x MOPP isolation. It operates efficiently with 85% typical efficiency and features a low no-load power consumption of less than 0.3W. The operating temperature range is -40°C to 70°C with derating.
The compact dimensions of 76.2mm x 50.8mm x 24.7mm make it suitable for integration into various systems. It is designed for through-hole mounting and comes in a 4-DIP Module package. The MTBF is rated at 2 million hours.
Key electrical specifications include line regulation of ±0.5%, load regulation of ±1%, and a transient response of 4%. The switching frequency is 65 kHz, with a hold-up time of 6ms at 230 VAC.
The input voltage range is 85-264 VAC.
The output voltage is 24V and the output power is 40W.
The operating temperature range is -40°C to 70°C with derating.
It is approved to EN/IEC 60601-1 medical standards and provides 2 x MOPP isolation.
The typical efficiency is 85%.
The MTBF is 2 million hours, based on Telcordia -SR332-issue 3.
The no-load power consumption is less than 0.3W.
