| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

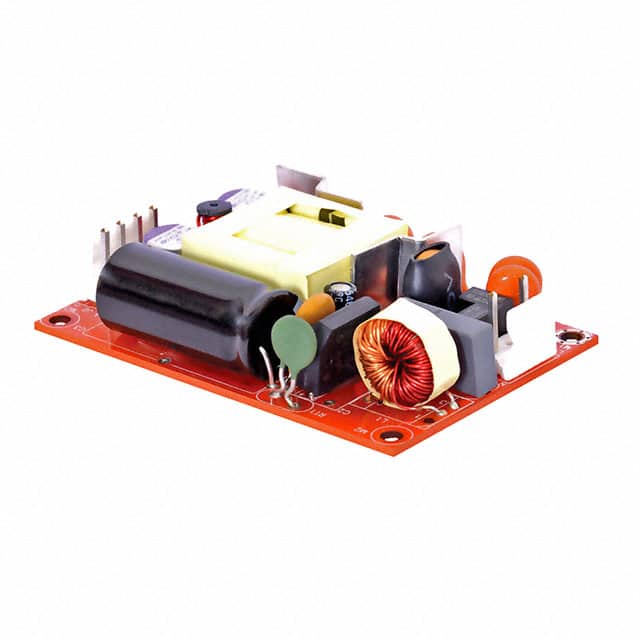

The Bel Power Solutions MBC41-1012L-2 is an open-frame AC DC converter designed for various applications, including medical, telecom, datacom, and industrial equipment. It delivers 40W of power with a 12V output voltage and a maximum current of 3.33A.
This converter operates with a universal input voltage range of 85-264 VAC and features an efficiency of 85% typical. Key electrical specifications include a line regulation of ±0.5% and a load regulation of ±1%. The operating temperature range is -40°C to 70°C with derating.
Designed for easy integration, the MBC41-1012L-2 is suitable for chassis mounting. It meets medical standards (EN/IEC 60601-1) and provides 2 x MOPP isolation. The unit has a compact form factor of 3.00" L x 2.00" W x 0.97" H.
The MBC41-1012L-2 has a nominal output voltage of 12V.
The maximum output current for the 12V output is 3.33A.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The mounting type is Chassis Mount.
The typical efficiency is 85%.
Yes, it is approved to EN/IEC 60601-1 medical standards.
