| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Protection Features | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

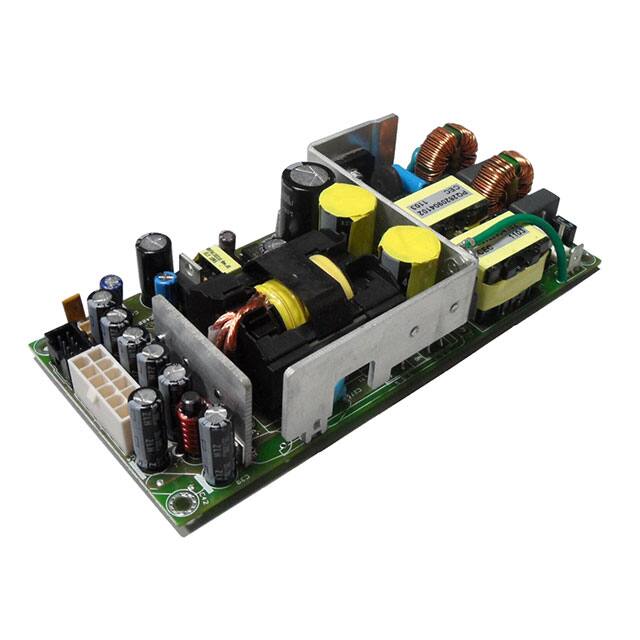

The Bel Power Solutions MBC401 Series AC/DC converters, including the MBC401-1048-S model, provide up to 400W of regulated output power. This specific model offers a nominal output voltage of 48VDC and a maximum output current of 8.3A. It operates within a universal input voltage range of 90-264 VAC.
The MBC401-1048-S is designed with high efficiency, reaching up to 94% typical, and features low standby power consumption of less than 0.5W. It includes essential protection features such as over-temperature, over-current, and short-circuit protection. Control signals like Power Good (P_OK) and Remote On/Off (PS_ON) are available, along with remote sense compensation.
This converter is suitable for medical equipment applications, complying with IEC/EN 60601-1 3rd ed. and ANSI/AAMI ES60601-1 3rd ed. standards. It offers 2xMoPP means of patient protection and is suitable for BF rated applied parts. The unit displays the CE-Mark for the European Low Voltage Directive (LVD).
The MBC401-1048-S is an enclosed type with chassis mounting. Its dimensions are 183.0mm x 84.4mm x 41.0mm. The operating temperature range is -20°C to 70°C with derating. It also includes a fan speed control function that turns off at less than 50W load.
The input voltage range is 90-264 VAC.
The nominal output voltage is 48 VDC.
The rated output power is 400W continuous, with a peak of 440W.
Typical efficiency is 94%.
The operating temperature range is -20°C to 70°C with derating.
It includes over temperature, over current, and short circuit protection.
It is an enclosed chassis mount package measuring 183.0mm x 84.4mm x 41.0mm.
