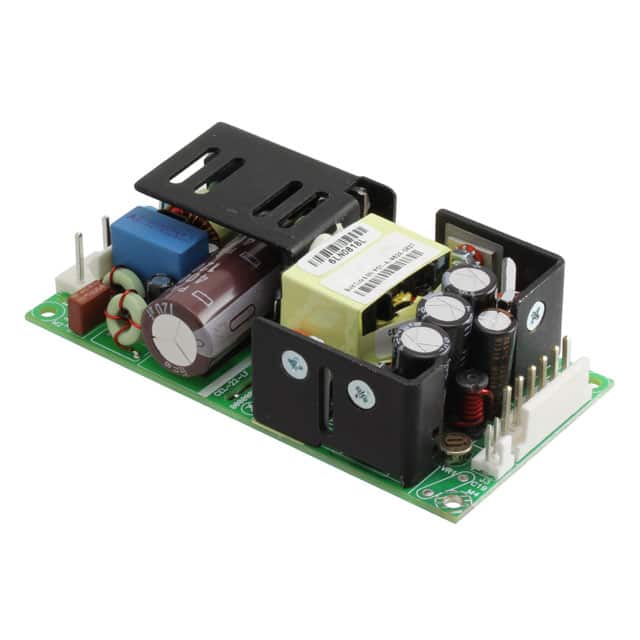

The Bel Power Solutions MBC40-3002G is an open-frame AC/DC converter delivering 40W of output power. It operates with a wide universal input voltage range of 90-264 VAC and a frequency of 47-400 Hz. This model offers three output voltages: 5.2V, 15V, and -15V, with corresponding maximum load currents of 6.0A, 1.5A, and 0.5A respectively.
Designed for demanding applications, the MBC40-3002G boasts an efficiency greater than 85% and low no-load power consumption. It meets the latest medical standards, including EN/IEC 60601-1, and provides 2 x MOPP isolation suitable for Class I and Class II applications. The converter operates within a temperature range of -20°C to 70°C with derating.
With a compact form factor of 4.00" x 2.00" x 1.20", this converter is suitable for chassis mounting. Key features include adjustable output, remote sense, and a standby output. Its low leakage current and adherence to medical standards make it ideal for use in monitoring, home health equipment, and surgical devices.
The input voltage range is 90-264 VAC.
V1: 5.2V at 6.0A max, V2: 15V at 1.5A max, V3: -15V at 0.5A max.
The operating temperature range is -20°C to 70°C with derating.
The mounting type is chassis mount.
The package style is open frame.
Typical efficiency is greater than 85%.
It provides 2 x MOPP isolation.
