MBC40-3000G-2
Bel Power Solutions

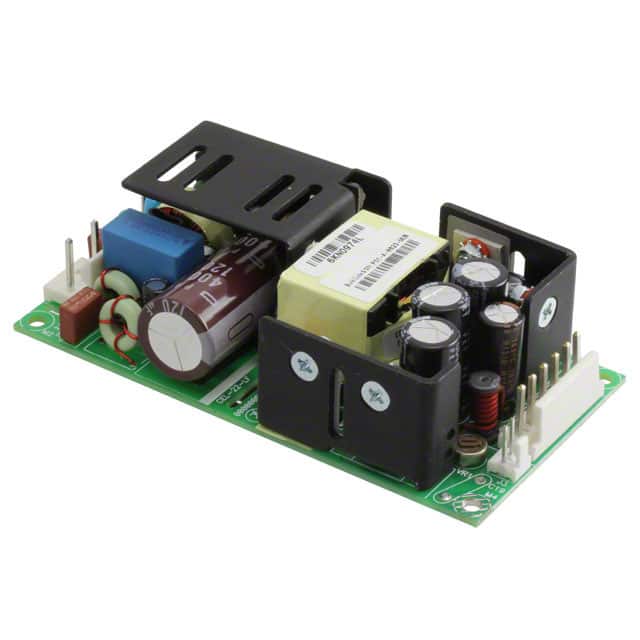

The Bel Power Solutions MBC40-3000G-2 is a 40W open frame AC/DC converter with a universal input range. It provides triple outputs of 5.2V, 12.5V, and -12.8V.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
The Bel Power Solutions MBC40-3000G is an open-frame AC/DC converter designed for medical applications. It operates with a wide universal input voltage range of 90-264 VAC and delivers up to 40W of output power.
This converter provides three output voltages: 5.2V at 6.0A, 12.5V at 2.0A, and -12.8V at 0.5A. It boasts an efficiency of 85% and features like adjustable output, remote sense, and standby output. The unit is approved to EN/IEC 60601-1 standards, offering 2 x MOPP isolation for Class I and Class II applications.
With dimensions of 4.00" x 2.00" x 1.20", the MBC40-3000G is suitable for chassis mounting. It operates within a temperature range of -20°C to 70°C with derating and has low leakage current and no-load power consumption.
Key specifications include a hold-up time of over 10ms at 120 VAC, line regulation of ±0.3%, and load regulation of ±0.5% for V1 and ±5% for V2/V3. The transient response is within 50% for a 50% to 100% load change.
The MBC40-3000G accepts 90-264 VAC input at 47-400 Hz.
It provides 5.2V at 6.0A, 12.5V at 2.0A, and -12.8V at 0.5A.
The operating temperature range is -20°C to 70°C with derating.
The typical efficiency is 85%.
The hold-up time is greater than 10 ms at 120 VAC.
