| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

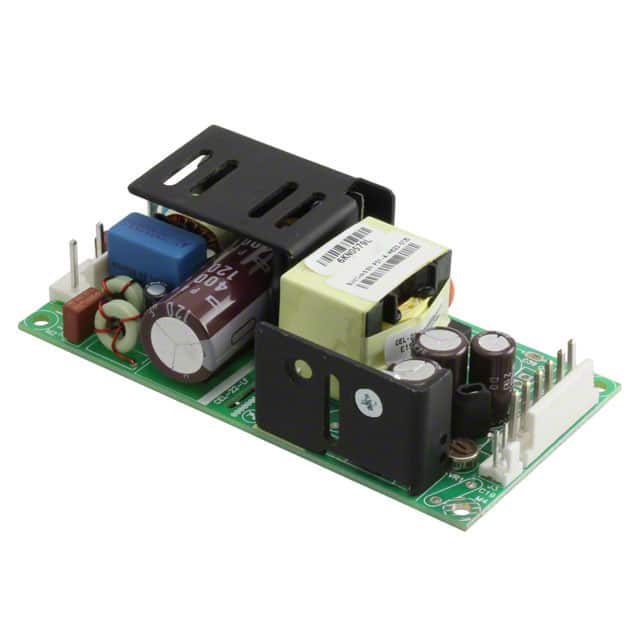

The Bel Power Solutions MBC40-1048G is an open-frame AC/DC converter designed for medical applications. It provides 40W of output power with a single 48V output voltage.
Key electrical specifications include a wide universal input range of 90-264 VAC, an efficiency of 85%, and low leakage current. The converter operates within a temperature range of -20°C to 70°C with derating.
With a compact form factor measuring 101.6mm x 50.8mm x 30.5mm, this unit is suitable for chassis mounting. It is approved to EN/IEC 60601-1 standards, offering 2 x MOPP isolation, making it ideal for medical monitoring and home health equipment.
The MBC40-1048G features include adjustable output, remote sense, standby output, and universal input capabilities. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
The MBC40-1048G has a single output voltage of 48V.
The maximum output power for the MBC40-1048G is 40W.
The MBC40-1048G accepts a universal input voltage range of 90 to 264 VAC.
The operating temperature range is -20°C to 70°C, with derating.
The dimensions are 101.6mm in length, 50.8mm in width, and 30.5mm in height.
Yes, the MBC40-1048G is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
