| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

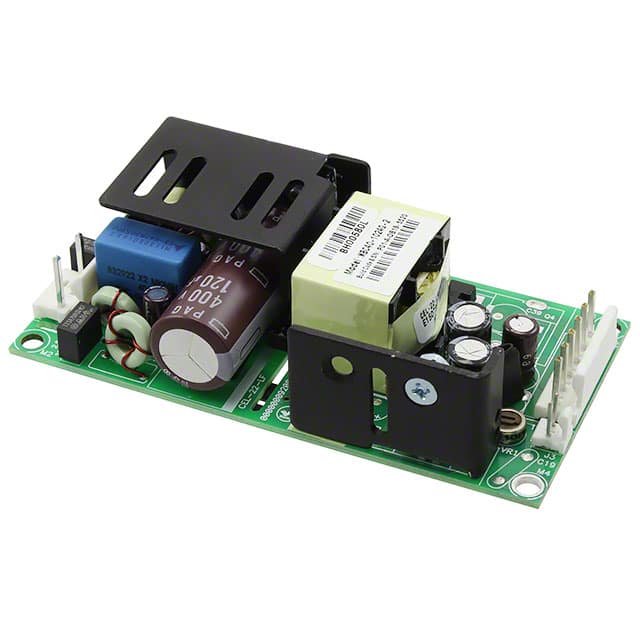

The Bel Power Solutions MBC40-1024G-2 is an open-frame AC/DC converter designed for medical applications. It delivers 40W of output power with a 24V single output voltage and a maximum current of 1.7A.
This converter operates with a wide universal input voltage range of 90-264 VAC and features an efficiency of over 85%. It is approved to EN/IEC 60601-1 standards, providing 2 x MOPP isolation. The operating temperature range is -20°C to 70°C with derating.
The physical dimensions are 4.00" x 2.00" x 1.20" (101.6mm x 50.8mm x 30.5mm), and it is designed for chassis mounting. Key features include adjustable output, remote sense, standby output, and universal input.
Ideal for monitoring, home health equipment, and surgical devices, this power supply meets RoHS3 compliance and has an MSL of 1.
90-264 VAC.
-20°C to 70°C with derating.
24 V.
1.7 A.
Typical >85%.
2 x MOPP.
101.6 mm x 50.8 mm x 30.5 mm.
