| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

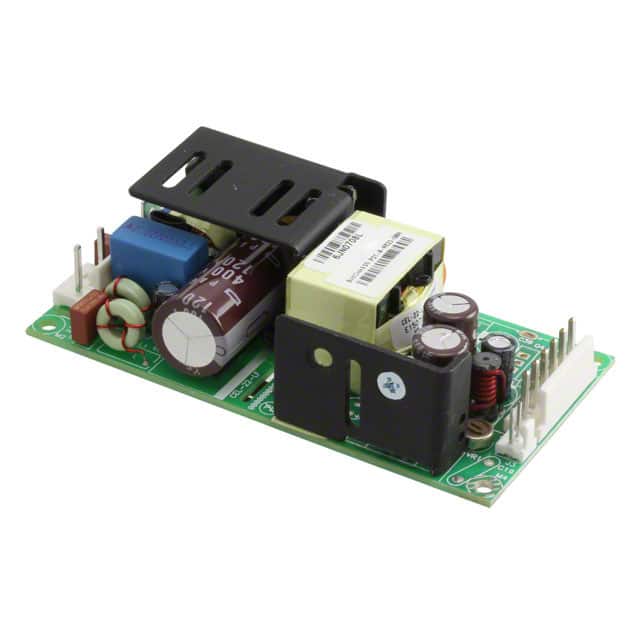

The Bel Power Solutions MBC40-1015G is an open-frame AC/DC converter designed for medical applications. It provides a single 15V output at up to 2.7A, delivering a total of 40W of power. The converter features a wide universal input voltage range of 90-264 VAC and an efficiency of 85% typical.
With dimensions of 101.6mm x 50.8mm x 30.5mm, this unit is suitable for chassis mounting. It operates within a temperature range of -20°C to 70°C with derating and offers an isolation voltage of 4.242 kV. The MBC40-1015G is designed for reliability and efficiency in demanding environments.
Key electrical specifications include line regulation of ±0.3% and load regulation of ±0.5% for the primary output. It also features adjustable output, remote sense, and standby output capabilities, making it versatile for various system integrations. The power supply meets medical standards and has a low leakage current.
The MBC40-1015G has a single output voltage of 15V.
The maximum output power for the MBC40-1015G is 40W.
The MBC40-1015G accepts a universal input voltage range of 90-264 VAC.
The MBC40-1015G has a typical efficiency of 85%.
The dimensions of the MBC40-1015G are 101.6mm (Length) x 50.8mm (Width) x 30.5mm (Height).
The MBC40-1015G operates within a temperature range of -20°C to 70°C, with derating.
The isolation voltage for the MBC40-1015G is 4.242 kV.
