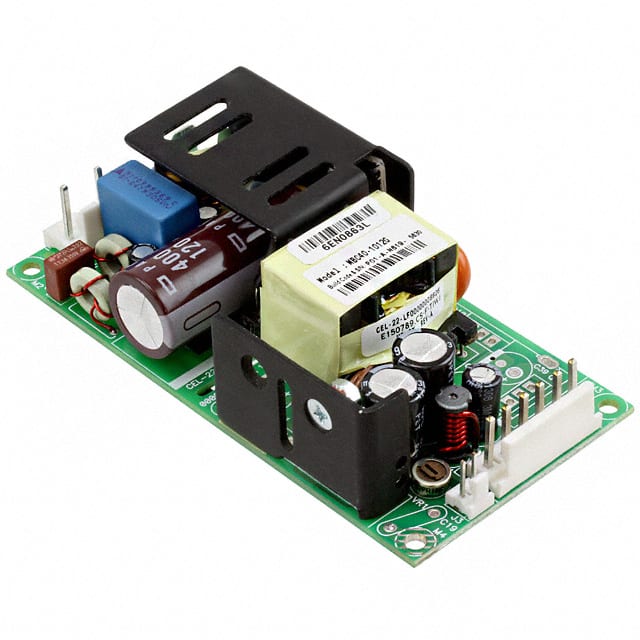

The Bel Power Solutions MBC40-1012G is an open-frame AC/DC converter designed for medical applications, offering 40W of output power at 12V. It accepts a wide universal input voltage range of 90-264 VAC and operates with an efficiency of up to 85%.
This converter is approved to EN/IEC 60601-1 medical standards and provides 2 x MOPP isolation. Key electrical specifications include a line regulation of ±0.3% and load regulation of ±0.5% for the primary output. The operating temperature range is -20°C to 70°C with derating.
With a compact form factor of 4.00" x 2.00" x 1.20", the MBC40-1012G is suitable for chassis mounting. It features universal input, adjustable output, remote sense, and standby output capabilities, making it ideal for monitoring, home health equipment, and surgical devices.
The MBC40-1012G accepts a universal input voltage of 90-264 VAC.
The MBC40-1012G is an open frame converter designed for chassis mounting.
The MBC40-1012G operates from -20°C to 70°C with derating.
The MBC40-1012G provides a single 12V output at 3.5A with 40W output power.
Typical efficiency is 85%.
The isolation voltage rating is 4.242kV.
The open frame converter measures 101.6mm x 50.8mm x 30.5mm.
