| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

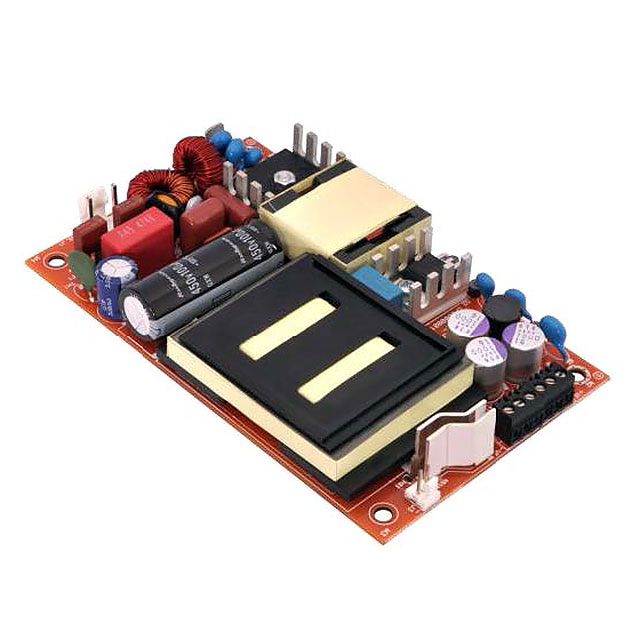

The Bel Power Solutions MBC275-1015L is an open frame AC/DC converter designed for various applications, including medical. It provides a single output of 15V with a current rating of 10.66A.
The converter operates with a universal input voltage range of 85 to 264 VAC and offers a power output of 160W, increasing to 275W with forced air. Key electrical specifications include an efficiency of 88% and an isolation voltage of 4 kV.
Designed for chassis mounting, this converter has dimensions of 127.0mm x 76.2mm x 19.0mm. It operates within a temperature range of -40°C to 70°C with derating. The series is MBC275, known for its 275W capability.
Compliance includes RoHS3 status, MSL 1, and REACH unaffected. The approval agency is CE.
The output voltage is 15V.
The power rating is 160W, and 275W with forced air.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 127.0mm x 76.2mm x 19.0mm.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
