| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

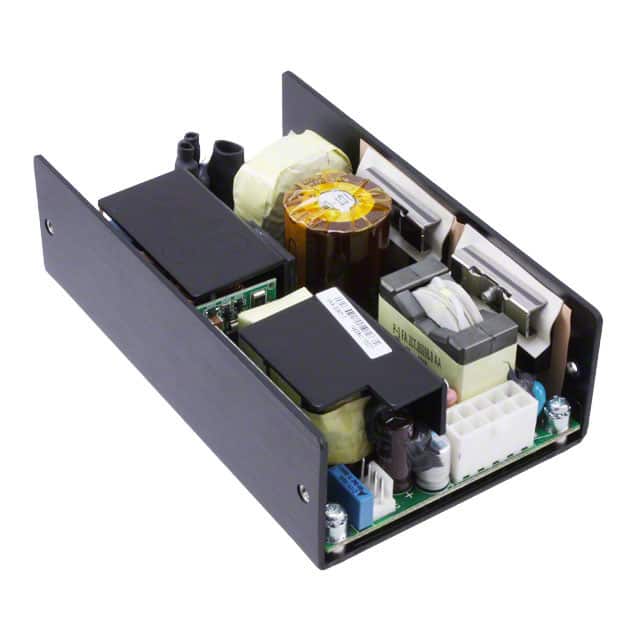

The Bel Power Solutions MBC250-1024G is part of the MBC250 series of AC-DC power supplies, designed for medical and other demanding applications. This unit provides a 24VDC output at up to 10.5A, delivering a total of 250W of power.
Key features include a universal AC input voltage range of 90-264 VAC, active power factor correction, and high efficiency up to 90% at full load. It is designed to meet international information technology and medical safety standards, including UL 60601-1 3rd, CSA 60601-1 3rd, and IEC 60950-1 3rd.
The power supply offers comprehensive protection features such as over-temperature, output over-voltage, over-current, and short-circuit protection, along with input over-voltage and under-voltage protection. It also boasts low conducted and radiated EMI, meeting EN 55011 class A standards with a 6dB margin.
With a compact size of 5.00" L x 3.00" W x 1.50" H and a high power density of 11.2 W/in³, the MBC250-1024G is suitable for applications where space is limited. It operates within a temperature range of -20°C to 70°C with derating.
The MBC250-1024G provides a nominal output voltage of 24 VDC.
The maximum output current for the MBC250-1024G is 10.5 A.
The MBC250-1024G has a power rating of 250W.
The efficiency of the MBC250-1024G is up to 90% at 230 VAC full load.
The operating temperature range is -20°C to 70°C, with derating.
The dimensions are 5.00 inches (127.0mm) in length, 3.00 inches (76.2mm) in width, and 1.50 inches (38.1mm) in height.
It meets UL 60601-1 3rd, CSA 60601-1 3rd, and IEC 60950-1 3rd safety standards.
