| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

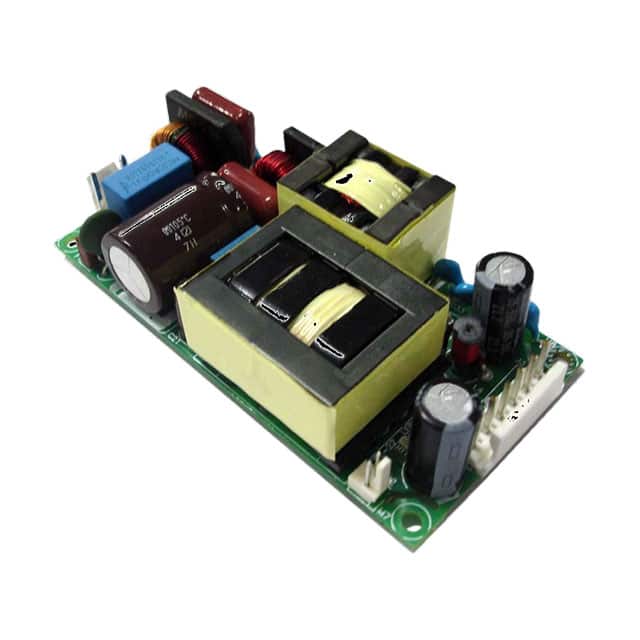

The Bel Power Solutions MBC225-1012L is part of the MBC225 Series of open-frame medical power supplies. It offers a universal 90-264 VAC input range and delivers up to 225W of output power with forced air cooling, or 120W with convection cooling at 40°C.
This converter provides a single 12V output with a maximum current of 18.75A under forced air conditions. Key electrical specifications include efficiencies up to 94%, a power factor greater than 0.95, and a wide operating temperature range of -40°C to 70°C with derating. It is designed and approved to the latest Medical standards (EN/IEC 60601-1), providing 2 x MOPP isolation for Class I & Class II applications.
The unit features a compact 2 x 4 x 1 inch form factor and chassis mount type. It is suitable for medical, telecom, datacom, and industrial equipment applications. The power supply also includes features such as dual fusing, a 12V fan output, and thermal shut-down.
The output voltage is 12V.
The maximum output power is 225W with 13 CFM forced air cooling.
The input voltage range is 85-264 VAC.
The operating temperature range is -40°C to 70°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
The REACH status is Unaffected.
