| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
175 pcs
|
175 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

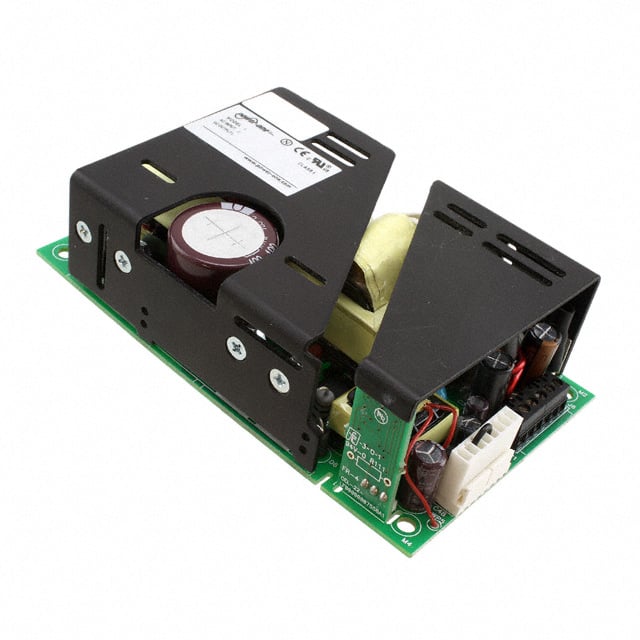

The MBC201-1012G is a single-output open frame AC/DC converter from Bel Power Solutions, part of the MBC201 series designed for medical and industrial applications. It provides a regulated 12V output at 13.33A, with a convection power rating of 160W and up to 200W with forced air cooling. The converter accepts a universal input of 90-264 VAC at 47-63 Hz, with a maximum input current of 2.4A at 120 VAC. Efficiency is typically 84% at 120 VAC (86% at 230 VAC).
The unit features built-in power factor correction (PFC), a standby output, and remote sense capability. It is housed in a compact open frame package measuring 5.00 x 3.00 x 1.50 inches (127.0 x 76.2 x 38.1 mm) and is designed for chassis mount with a JST header connector. The operating temperature range is -20°C to 70°C with derating. The MBC201-1012G is approved to EN/IEC 60601-1 medical safety standards, providing 2 x MOPP isolation for Class I and Class II applications. It also carries CE marking and is suitable for medical, telecom, datacom, and industrial equipment.
12V DC.
160W convection, 200W with forced air cooling.
90-264 VAC.
-20°C to 70°C with derating.
Open frame, chassis mount, dimensions 5.00" x 3.00" x 1.50" (127.0 x 76.2 x 38.1 mm), JST header connector.
Yes, RoHS3 compliant per database (unverified).
Approved to EN/IEC 60601-1 (2 x MOPP) for Class I and Class II applications.
