| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

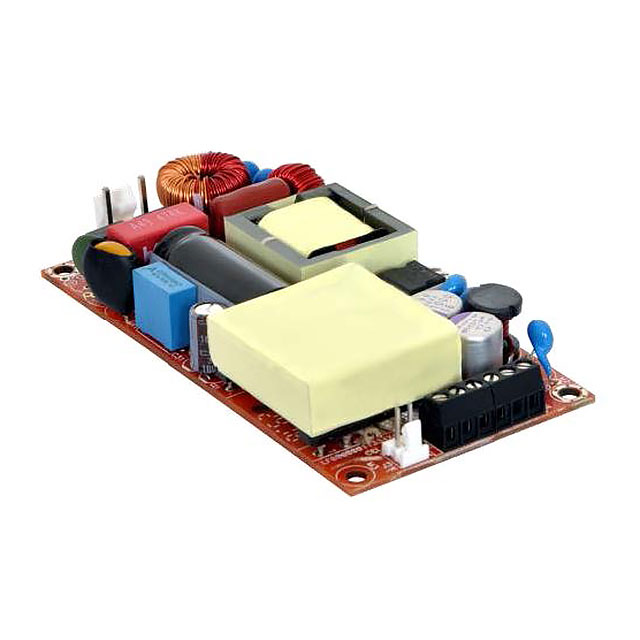

The Bel Power Solutions MBC180-1T12L is an open frame AC/DC converter designed for external or internal use. It provides a single 12V output with a power rating of 120W, expandable to 180W with forced air.
Key electrical specifications include a universal input voltage range of 85-264 VAC, an efficiency of 88%, and an isolation voltage of 4 kV. The converter supports adjustable output, DC input capability, PFC, and standby output features. It operates within a temperature range of -40°C to 70°C with derating.
Mechanically, the MBC180-1T12L features a chassis mount type and measures 101.6mm x 50.8mm x 19.1mm. Its applications include medical devices. The unit is RoHS3 compliant and comes packaged in a box.
This model is part of the MBC180 series and is suitable for various power supply needs requiring a reliable AC to DC conversion.
The output voltage is 12V.
The maximum output current is 10A.
The power rating is 120W, or 180W with forced air.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 101.6mm x 50.8mm x 19.1mm.
It uses chassis mounting.
