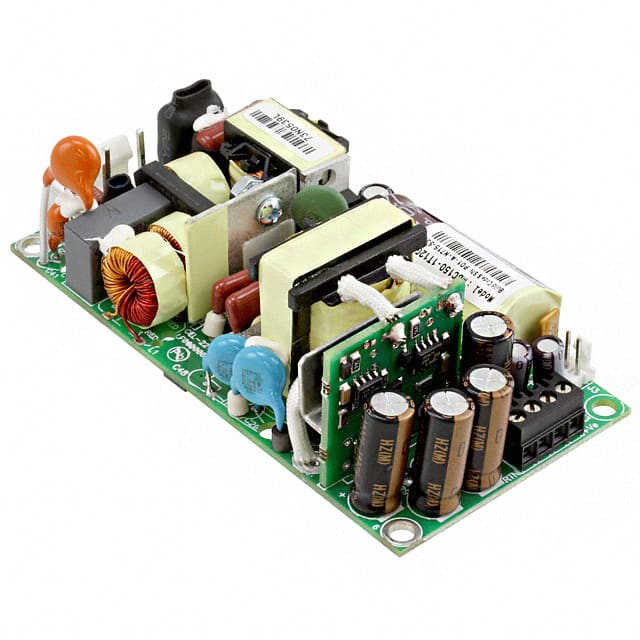

The Bel Power Solutions MBC150-1T12G is an open-frame AC/DC power supply designed for demanding applications. It offers a universal input voltage range of 90-264 VAC and provides a single 12VDC output.
With a maximum output power of 150W under forced-air cooling (100W convection), this converter boasts high efficiency, reaching up to 86% at 230 VAC. Key electrical specifications include a line regulation of ±0.5% and load regulation of ±2.0%. The operating temperature range is -20°C to 70°C with derating.
Designed for reliability and safety, the MBC150 series meets medical standards EN/IEC 60601-1, providing 2 x MOPP isolation. It is suitable for medical, telecom, datacom, and industrial equipment. The unit has a compact form factor of 4 x 2 x 1.3 inches.
Mounting is via chassis, and the open-frame construction facilitates integration into various systems. It also includes features like adjustable output, DC input capability, and a standby output.
The output voltage is 12 VDC.
The maximum output power is 150W with forced air cooling and 100W under convection cooling.
The input voltage range is 90-264 VAC.
The efficiency is typically 86% at 230 VAC and 84% at 120 VAC.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 101.6mm (4.00") L x 50.8mm (2.00") W x 33.6mm (1.32") H.
It is ideal for medical, telecom, datacom, and industrial equipment.
